NOVOFLEX | Reusable Push Mount Cable Ties – Wing Series
Integrated Panel Mount Cable Fastening System
Direct-to-panel cable fastening applications requiring secure retention, vibration stability, and fast assembly in automotive, industrial, railway, aerospace, telecom, and heavy equipment environments. Designed for wire harness systems where cable bundles must remain firmly fixed to panels, chassis, or structural surfaces under continuous movement and operational stress.
In dynamic electrical systems, unstable harness routing creates gradual mechanical stress on cables, connectors, and fastening points. Conventional cable ties often require additional mounting hardware, increase assembly complexity, or fail to maintain stable positioning under vibration. Novoflex Push Mount Cable Ties – Wing Series integrate fastening and mounting into a single high-efficiency component, providing organized routing, secure retention, and improved assembly speed in demanding industrial environments.
Key Features
- Integrated push-mount anchor for direct chassis fastening.
- Wing stabilization design reduces vibration and movement.
- High tensile locking system maintains secure retention.
- Tool-free installation improves assembly efficiency.
- Suitable for sheet metal, wood, cast iron, and panel applications.
- Resistant to fungus, corrosion, and mild acids.
- Halogen-free construction.
Technical Specifications
- Material: UL Listed Nylon 6.6 (Polyamide)
- Flammability Rating: UL94 V-2
- Operating Temperature: -25°C to +85°C
- Standard Colours: Natural White & UV Resistant Black
- Halogen Free: Yes
- Mounting Style: Arrowhead Wings Push Mount
- Panel Compatibility: Sheet Metal, Wood, Cast Iron
- Tensile Performance: High Tensile Strength Locking
- Resistance: Fungus, Corrosion, Mild Acids
- Storage Condition: Cool, Dry, Sealed Environment Away from Sunlight

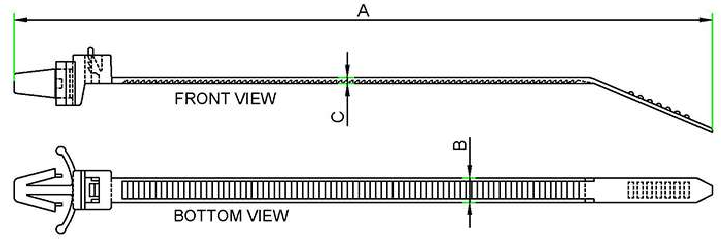

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Thickness (C) - mm | Max Bundle Dia - mm | Push Hole Dia - mm | Panel Thickness - mm | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| CPMR 135 | 135 | 4.9 | 1.3 | 28 | 7.2 | 100 |
Standard & Custom Colours
Applications
- Automotive wire harness systems
- Aerospace cable routing
- Railway electrical systems
- White goods manufacturing
- Industrial control panels
- Telecom equipment
- Heavy equipment manufacturing
- Consumer durable assemblies
- Shipbuilding and marine systems
Use When
- Cable bundles must be fixed directly to panels or chassis.
- High vibration environments require stable retention.
- Fast assembly and reduced hardware count are critical.
- Wiring systems require organized routing and strain reduction.
- Long-term fastening reliability is required in dynamic environments.
Avoid When
- Frequent cable repositioning or reusability is required.
- Mounting surfaces lack compatible push-hole dimensions.
- Ultra-high temperature environments exceed Nylon operating limits.
- Metal fastening systems are mandatory for fire-critical installations.
