NOVOFLEX | Nylon Flexible Conduits
In demanding installations, exposed wiring is subjected to abrasion, mechanical stress, heat, and chemical exposure—leading to premature failure and safety risks.
Novoflex Nylon Flexible Conduits are engineered from high-grade polyamide (PA) to provide robust, all-round protection for cables and wires. Designed to withstand twisting, pressure, and harsh operating conditions, these conduits maintain structural integrity while offering the flexibility required for complex routing.
They deliver a reliable solution for environments where durability, protection, and adaptability are critical.
Key Features
- High Mechanical Strength: Resistant to abrasion, pressure, and twisting, ensuring long-term durability.
- Flexible & Recoil Design: Maintains shape under load and returns to form without cracking or deformation.
- Chemical Resistance: Withstands exposure to acids, lubricants, and coolants.
- Thermal Stability Working: -25°C to +85°C
- Thermal Stability Intermittent: Up to +105°C
- Material: Polyamide (PA) - Provides strength, flexibility, and resistance to environmental stress.
- UV-Resistant Black Finish: Suitable for outdoor and exposed applications.
Technical Specifications
- Product Type: Nylon Flexible Conduit
- Material: Polyamide (PA)
- Colour: Black
- Flexibility: Flexible with Recoil / Shape Recovery
- Mechanical Resistance: Resistant to Abrasion, Pressure & Twisting
- Chemical Resistance: Resistant to Acids, Lubricants & Coolants
- Working Temperature: -25°C to +85°C
- Intermittent Temperature: Up to +105°C
- UV Resistance: UV-Resistant Black Finish
- Primary Function: Cable & Wire Mechanical Protection
- Recommended Applications: Automotive, Machinery, Electrical & Industrial Installations
- Installation Type: Flexible Routing for Fixed & Dynamic Applications
- Protection Provided: Abrasion, Mechanical Stress & Environmental Protection
Product Dimensions

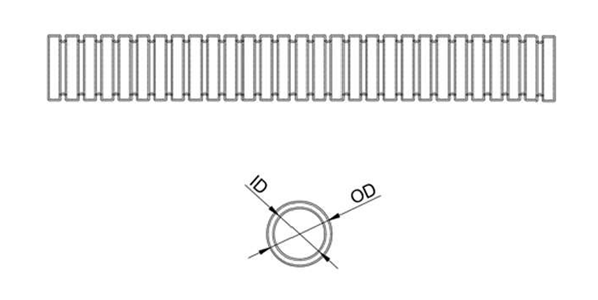

| Novoflex Part No. | Inner Dia - mm | Outer Dia - mm | Bending Curved Radius - mm | Colour | Standard Packing (Mtr) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| NFC-65 | 6.5 | 10 | 16 | BLACK | 100 | ||
| NFC-100 | 10 | 13 | 20 | BLACK | 100 | ||
| NFC-120 | 12 | 15.8 | 30 | BLACK | 100 | ||
| NFC-143 | 14.3 | 18.5 | 40 | BLACK | 100 | ||
| NFC-170 | 17 | 21.2 | 45 | BLACK | 100 | ||
| NFC-230 | 23 | 28.5 | 50 | BLACK | 100 | ||
| NFC-290 | 29 | 34.5 | 60 | BLACK | 100 | ||
| NFC-360 | 36 | 42.5 | 70 | BLACK | 100 | ||
| NFC-480 | 48 | 54.5 | 90 | BLACK | 100 |
Standard & Custom Colours
Applications
- Machinery & Equipment Wiring
- Automotive & Transportation Systems
- Electrical Insulation & Cable Routing
- Industrial Installations with Mechanical Stress
- Outdoor Cable Protection Applications
Use When
- Cables require mechanical protection and flexibility
- Exposure to abrasion, pressure, or movement is present
- Routing involves bends, vibration, or dynamic conditions
Avoid When
- Rigid conduit systems are required
- Extremely high-temperature environments beyond specified range
Why Novoflex
Cable protection is not just about covering—it is about absorbing environmental stress without failure. Novoflex conduits ensure consistent protection, flexibility, and long-term reliability in demanding applications.
