NOVOFLEX | Adhesive Backed PCB Support
Secure PCB Mounting Without Chassis Drilling
Reliable PCB mounting in electronic assemblies where drilling, metal hardware, or complex fastening methods are impractical. Designed for telecom equipment, industrial control panels, networking systems, instrumentation assemblies, automotive electronics, and compact electronic enclosures requiring fast, insulated, and tool-free PCB installation.
In modern electronic systems, mounting space is increasingly limited while assembly density continues to increase. Conventional hardware-based PCB mounting methods add installation complexity, increase assembly time, and may introduce unwanted mechanical stress or chassis modification requirements. Novoflex Adhesive Backed PCB Support is engineered to provide stable PCB positioning, electrical insulation, and simplified installation without chassis drilling or additional fastening hardware.
Key Features
- Adhesive-backed mounting eliminates drilling requirements.
- Snap-fit PCB locking enables tool-free installation.
- Nylon 6 construction provides electrical insulation.
- Maintains stable PCB spacing for airflow and servicing.
- UL94 V-2 flame-retardant material.
- Resistant to fungus, corrosion, and mild acids.
- Non-conductive and non-magnetic structure.
- Simplifies compact electronic assembly layouts.
Technical Specifications
- Material: Nylon 6 (Polyamide)
- Flammability Rating: UL94 V-2
- Operating Temperature: -25°C to +85°C
- Standard Colour: Natural White
- Mounting Type: Adhesive Backed
- PCB Installation: Snap-Fit
- Spacing Distance: 9.7 mm
- Resistance Properties: Fungus, Corrosion, Mild Acid Resistant
- Electrical Properties: Non-Conductive, Non-Magnetic
- Installation Method: Tool-Free
- Standard Packing: 100 Nos

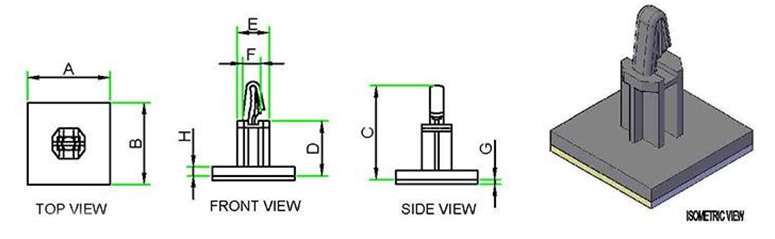

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Height (C) - mm | Spacing Length (D) - mm | Spacer Dia (E) - mm | Lock Head Dia (F) - mm | Adhesive Thickness (G) - mm | Base Thickness (H) | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PCBA 97 | 18 | 17.8 | 20.5 | 12 | 7.1 | 4.5 | 1 | 2 | 100 |
Standard & Custom Colours
Applications
- Telecom equipment assemblies
- PCB mounting inside control panels
- Consumer electronics
- Electric metering systems
- Industrial instrumentation
- Networking equipment
- Automotive electronics
- Aviation electronics
- Power distribution systems
- Retrofit electronic assemblies
Use When
- Chassis drilling is not possible.
- Fast PCB assembly is required.
- Electrical insulation between PCB and chassis is necessary.
- Compact electronics require clean internal layouts.
- Maintenance-friendly PCB mounting is needed.
Avoid When
- Heavy-load structural support is required.
- Operating temperatures exceed specified limits.
- Surfaces are heavily textured or contaminated, reducing adhesive effectiveness.
- High mechanical shock loads require metal-reinforced mounting systems.
