NOVOFLEX | Locking Circuit Board Support
Permanent PCB Locking Stability
Secure and permanent PCB positioning in electronic assemblies where vibration resistance, installation speed, and structural stability are critical. Designed for telecom systems, industrial control panels, automotive electronics, instrumentation assemblies, networking hardware, and compact electronic systems requiring dependable snap-fit PCB retention.
As electronic systems become increasingly compact and service-intensive, PCB stability becomes essential to long-term operational reliability. Conventional mounting methods often introduce alignment inconsistencies, excessive hardware complexity, and increased assembly time. In vibration-prone environments, unstable PCB positioning can gradually create connector stress, misalignment, and long-term structural fatigue. Novoflex Locking Circuit Board Support is engineered to provide permanent PCB locking, controlled board spacing, and electrically insulated support for reliable electronic assembly performance.
Key Features
- Snap-fit locking mechanism enables tool-free PCB installation.
- Maintains permanent and stable PCB spacing.
- Nylon 6 construction provides electrical insulation and corrosion resistance.
- Non-conductive and non-magnetic structure protects sensitive electronics.
- UL94 V-2 flame-retardant material.
- Resistant to fungus, corrosion, and mild acids.
- Improves assembly efficiency and servicing accessibility.
- Supports vibration-resistant PCB positioning.
Technical Specifications
- Material: Nylon 6 (Polyamide)
- Flammability Rating: UL94 V-2
- Operating Temperature: -25°C to +85°C
- Standard Colour: Natural White
- Installation Type: Snap-Fit
- Electrical Properties: Non-Conductive, Non-Magnetic
- Resistance Properties: Fungus, Corrosion, Mild Acid Resistant
- Standard Packing: 100 Nos.
Product Dimensions

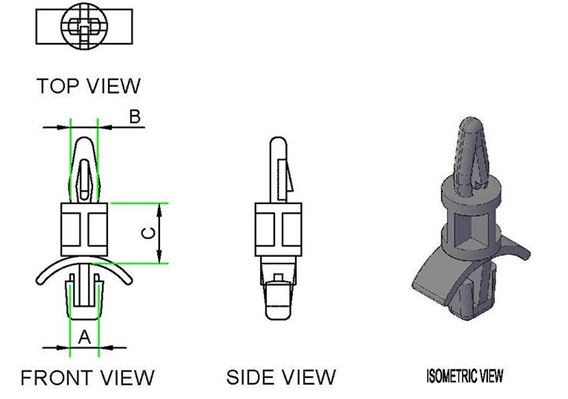

| Novoflex Part No. | Push Hole Dia (A) - mm | Push Hole Dia (B) - mm | Spacing Height (C) - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|
| LCBS 95 | 4.2 | 4 | 9.2 | 100 |
Standard & Custom Colours
Applications
- PCB mounting in telecom systems
- Industrial control panels
- Consumer electronics
- Electric metering devices
- Power distribution systems
- Automotive electronics
- Railway electronics
- Aviation systems
- Networking equipment
- Electronic instrumentation assemblies
Use When
- Permanent PCB locking is required.
- Fast assembly without tools is preferred.
- Electrical insulation between PCB and chassis is necessary.
- Compact electronics demand organized board positioning.
- Maintenance access is still required after installation.
Avoid When
- Heavy mechanical load-bearing support is needed.
- Operating temperatures exceed specified limits.
- PCB thickness or hole sizes differ from required specifications.
- Applications require adjustable or movable PCB positioning.
Why Novoflex
NOVOFLEX develops engineered PCB support and fastening systems designed for industrial reliability, installation efficiency, and long-term operational stability. Every component is built to simplify assembly while protecting electronic systems from vibration, misalignment, and structural failure in demanding environments.NOVOFLEX |
