NOVOFLEX | SLIDE SECURE STYLE PCB SUPPORTS
Secure PCB Mounting with Easy Release Access
Electronic assemblies, industrial control panels, automation systems, compact devices, and applications where PCBs require repeated servicing, inspection, upgrades, or replacement without compromising mounting stability.
Key Features
- Dual locking system with Slide-Secure and Push-Lock mechanisms
- Tool-free installation into 4 mm PCB holes
- Large base for enhanced PCB stability and alignment
- Quick PCB removal for maintenance and upgrades
- UL94 V-2 compliant flame resistance
- Resistant to corrosion, fungus, and mild acids
- Continuous operating range from -25°C to +85°C
- Intermittent thermal resistance up to 115°C for 500 hours
- Natural white colour for visibility during installation and inspection
Technical Specifications
- Product Type: Slide Secure Style PCB Support
- Material: Nylon 6 (Polyamide)
- Mounting Type: Slide-Secure + Push-Lock
- PCB Hole Compatibility: 4 mm
- Installation Type: Snap-Fit / Tool-Free
- Continuous Operating Temperature: -25°C to +85°C
- Intermittent Temperature Resistance: Up to 115°C for 500 Hours
- Flammability Rating: UL94 V-2
- Resistance Properties: Fungus, Corrosion, Mild Acids
- Electrical Properties: Non-Conductive
- Magnetic Properties: Non-Magnetic
- Standard Colour: Natural White
Product Dimensions

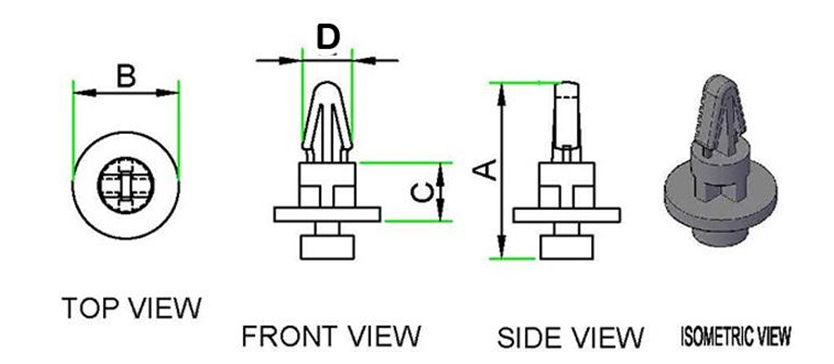

| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Spacing Length (C) - mm | PCB Hole Dia (D) - mm | PCB Thickness - mm | Standard Packing Nos. | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| PCBW 64 | 19.4 | 11.7 | 6.4 | 4 | 1.5 | 100 |
Standard & Custom Colours
Applications
- Industrial control panels
- Consumer electronics
- Automation systems
- Compact electronic devices
- Electrical appliances
- Machinery control systems
- Prototyping assemblies
- Telecom equipment
- PCB mounting in maintenance-intensive environments
Use When
- PCBs require repeated servicing or upgrades
- Tool-free installation is preferred
- Stable PCB alignment is critical
- Compact assemblies demand efficient maintenance access
- Vibration resistance and secure mounting are required
Avoid When
- PCB hole dimensions differ from 4 mm compatibility
- Heavy structural load-bearing support is required
- Applications exceed specified temperature limits
- Metal-based grounding supports are mandatory
Why Novoflex
Novoflex PCB support solutions are engineered for modern electronic assemblies where precision, serviceability, and long-term reliability are essential. By combining installation efficiency with stable retention systems, Novoflex products help OEMs reduce assembly complexity, minimize maintenance downtime, and improve operational consistency across electronic applications.NOVOFLEX |
