NOVOFLEX | CARD GUIDES
Snap-In PCB Guidance for Stable Board Alignment
Control panels, telecom racks, electronic enclosures, networking systems, and industrial assemblies where PCBs require stable guidance, organized positioning, and quick installation within compact chassis structures.
Key Features
- Snap-in mounting system for quick installation
- Smooth guide tracks for easy PCB insertion and removal
- Durable Nylon 6 construction for long-term reliability
- Non-conductive and non-magnetic design
- Halogen-free construction for sensitive electronic applications
- UL94 V-2 compliant flame resistance
- Resistant to fungus, corrosion, and mild acids
- Operating temperature range from -25°C to +85°C
- Available in four standard lengths
- Natural white colour for visibility during assembly and inspection
Technical Specifications
- Product Type: Card Guide
- Material: Nylon 6 (Polyamide)
- Mounting Type: Snap-In
- Installation Type: Tool-Free
- Operating Temperature: -25°C to +85°C
- Flammability Rating: UL94 V-2
- Resistance Properties: Fungus, Corrosion, Mild Acids
- Electrical Properties: Non-Conductive
- Magnetic Properties: Non-Magnetic
- Halogen-Free: Yes
- Standard Length Options: Four Standard Lengths
- Standard Colour: Natural White
Product Dimensions

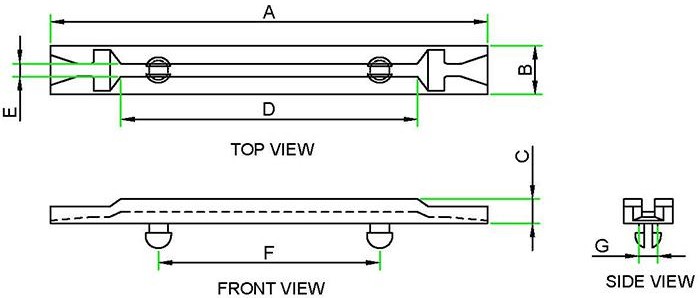

| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Height (C) - mm | PCB Length (D) - mm | PCB Thickness (E) - mm | Push Lock Distance (F) - mm | Push Hole Dia (G) - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|---|
| CG 80 | 80.8 | 9 | 4.5 | 55.5 | 2.4 | 40.9 | 3.6 | 100 | ||
| CG 120 | 120 | 8.8 | 4.5 | 94.8 | 2.1 | 80.1 | 3.9 | 100 | ||
| CG 180 | 178 | 9 | 4.4 | 153 | 2.1 | 140 | 4 | 100 | ||
| RCG 255 | 255 | 8.1 | 4.4 | 245 | 2.0 | 114.8 | 4.9 | 100 |
Standard & Custom Colours
Applications
- Control panels
- Telecom racks
- Networking enclosures
- Industrial electronic equipment
- PCB chassis systems
- Compact electronics
- Prototyping setups
- Electronic control cabinets
Use When
- Organized PCB alignment is required
- Smooth PCB insertion and removal are critical
- Fast snap-in installation is preferred
- Lightweight non-conductive guides are necessary
- Compact enclosure organization is important
Avoid When
- Structural load-bearing applications are required
- PCB dimensions exceed guide compatibility
- Metal shielding or grounding guides are mandatory
- Operating temperatures exceed specified limits
Why Novoflex
Novoflex PCB management solutions are engineered to improve assembly precision, serviceability, and long-term system stability in modern electronic applications. By combining installation efficiency with durable non-conductive materials, Novoflex products help manufacturers simplify electronic integration while maintaining organized and reliable PCB positioning.NOVOFLEX |
