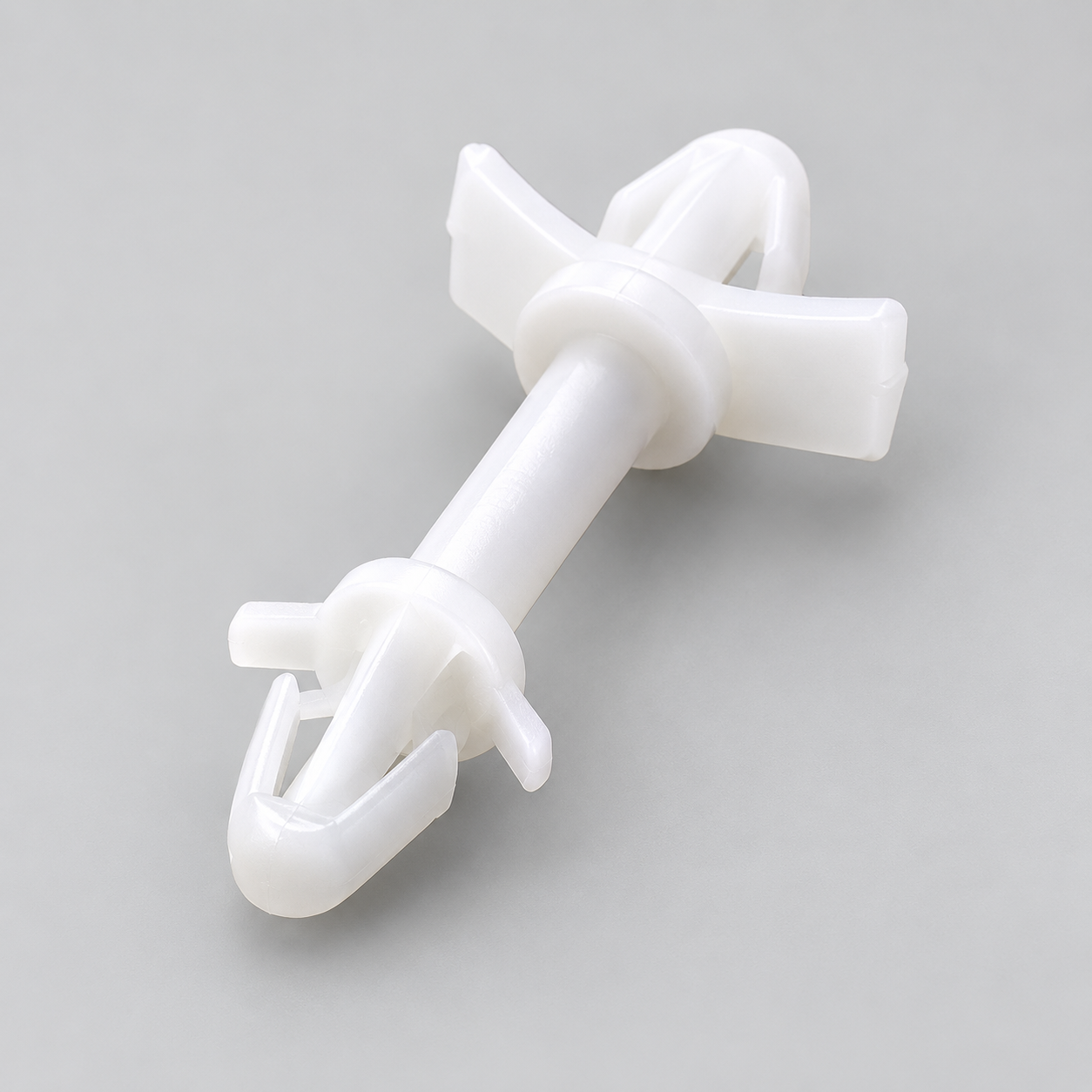

NOVOFLEX | Locking Style PCB Supports
Secure snap-fit PCB mounting with stable spacing support
Designed for electronic assemblies, control systems, appliances, and industrial equipment where printed circuit boards require stable, insulated, and vibration-resistant mounting within compact chassis environments.
Key Features
- Secure locking snap-fit installation
- Non-conductive and non-magnetic construction
- Stable PCB spacing and alignment
- Tool-free mounting system
- Resistant to fungus, corrosion, and mild acids
Technical Specifications
- Material: Nylon 6 (Polyamide)
- PCB Hole Compatibility: 4 mm
- Chassis Hole Compatibility: 4.8 mm to 5.5 mm
- Compatible Chassis & PCB Thickness: 0.8 mm to 2 mm
- Operating Temperature: -25°C to +85°C
- Intermittent Temperature: Up to +115°C for 500 Hours
- Flammability Rating: UL94 V-2
- Standard Colour: Natural White
- Installation Type: Snap-Fit Locking PCB Support
- Chemical Resistance: Resistant to Fungus, Corrosion & Mild Acids
- Color: white

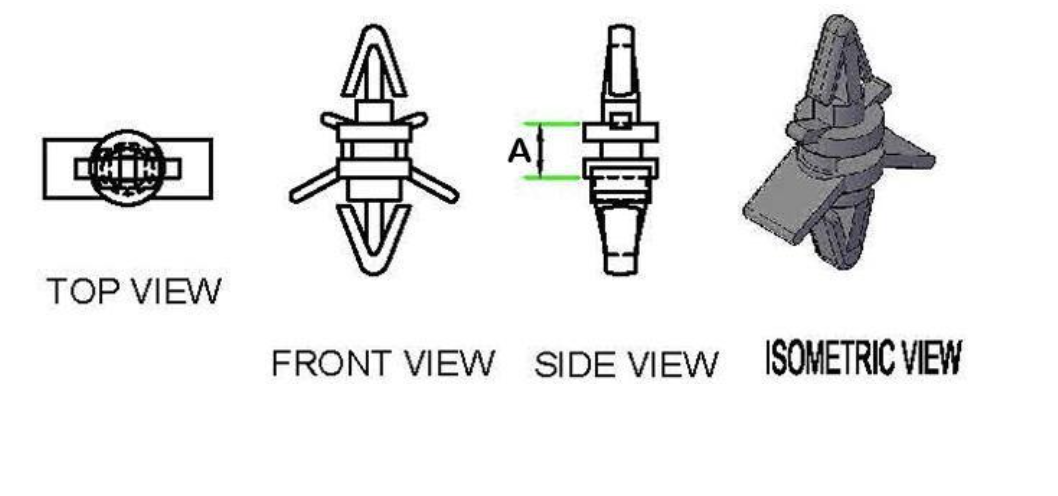

Product Dimensions
| Novoflex Part No. | Spacing Height (A) - mm | Chassis Hole Dia - mm | PCB Hole Dia - mm | PCB / Chassis Thickness - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| PCBL 48 | 4.8 | 4.8 | 4.0 | 0.8 -2.0 | 100 | ||
| PCBL 64 | 6.4 | 4.8 | 4.0 | 0.8 -2.0 | 100 | ||
| PCBL 95 | 9.5 | 5.2 | 4.0 | 0.8 -2.0 | 100 | ||
| PCBL 111 (S) | 11.2 | 4.8 | 4.0 | 0.8 -2.0 | 100 | ||
| PCBL 159 | 15.8 | 5.5 | 4.0 | 0.8 -2.0 | 100 | ||
| PCBL 191 | 19.1 | 4.8 | 4.0 | 0.8 -2.0 | 100 | ||
| PCBL 222 | 22.9 | 4.8 | 4.0 | 0.8 -2.0 | 100 | ||
| PCBL 286 | 28.2 | 4.8 | 4.0 | 0.8 -2.0 | 100 | ||
| PCBL 318 | 32.6 | 5.2 | 4.0 | 0.8 -2.0 | 100 | ||
| PCBL 349 | 34.9 | 4.8 | 4.0 | 0.8 -2.0 | 100 |
Standard & Custom Colours
Applications
- Electronic control panels
- Consumer appliances
- Industrial automation systems
- PCB prototyping assemblies
- Compact electronic equipment
- Instrumentation and control systems
Use When
- Secure PCB mounting is required
- Electrical insulation between PCB and chassis is important
- Tool-free assembly improves efficiency
- Stable spacing and vibration resistance are necessary
Avoid When
- Heavy structural load-bearing support is required
- Operating temperatures exceed specifications
- Metal conductive mounting systems are mandatory
- Extremely high mechanical shock environments require metal fastening
Why Novoflex
Novoflex develops precision-engineered mounting and cable management solutions that improve assembly reliability, electrical safety, and installation efficiency. By combining durable polymer engineering with practical fastening systems, Novoflex products support stable performance across demanding electronic applications.NOVOFLEX |
