NOVOFLEX | Reverse Locking Type PCB Support
Secure Reverse-Lock PCB Mounting
Reliable PCB retention and controlled board positioning in electronic assemblies where vibration resistance, installation efficiency, and secure locking stability are critical. Designed for telecom systems, industrial control panels, instrumentation equipment, consumer electronics, automation systems, and compact electronic assemblies requiring dependable snap-fit PCB support.
In compact electronic systems, PCB instability often develops gradually through vibration, repeated servicing, and inconsistent mounting pressure. Conventional support systems may allow minor movement that eventually transfers stress into connectors, solder joints, and board interfaces. Novoflex Reverse Locking Type PCB Support is engineered to provide secure reverse-lock retention, stable PCB spacing, and controlled mechanical positioning while maintaining electrical insulation and assembly accessibility.
Key Features
- Reverse-lock mechanism for secure PCB retention.
- Tool-free snap-fit installation.
- Stable PCB spacing and alignment.
- Non-conductive and corrosion-resistant construction.
- Lightweight and vibration-resistant design.
- Nylon 6 (Polyamide) construction.
- Non-magnetic structure for sensitive electronics.
- UL94 V-2 flame-retardant material.
Technical Specifications
- Product Type: Reverse Locking Type PCB Support
- Material: Nylon 6 (Polyamide)
- Mounting Method: Snap-Fit Locking
- Function: PCB Support & Spacing
- Electrical Property: Non-Conductive
- Magnetic Property: Non-Magnetic
- PCB Hole Compatibility: 4.0 mm
- PCB Thickness: 1.6 mm
- Chassis Hole: 6.0 mm
- Chassis Thickness: 0.8 to 2.0 mm
- Operating Temperature: -25°C to +85°C
- Flammability Rating: UL94 V-2
- Standard Colour: Natural White
Product Dimensions

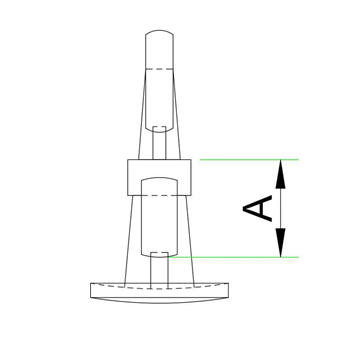

| Novoflex Part No. | Spacing Height A (mm) | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|
| PCBR 64 | 6.8 | 100 | ||
| PCBR 95 | 9.6 | 100 |
Standard & Custom Colours
Applications
- PCB mounting in electronic assemblies
- Industrial control panels
- Telecom equipment
- Consumer electronics
- Instrumentation systems
- Appliance electronics
- Compact electronic devices
- Prototyping and development setups
- Automation systems
Use When
- Secure PCB retention is required.
- Tool-free assembly is preferred.
- Non-conductive mounting is necessary.
- Consistent PCB spacing is important.
- Frequent servicing or maintenance access is expected.
Avoid When
- Heavy structural load-bearing applications are involved.
- Metal grounding through supports is required.
- Operating temperatures exceed polymer limitations.
- Permanent bonded mounting systems are preferred.
Why Novoflex
NOVOFLEX develops industrial fastening and PCB support solutions engineered for installation efficiency, operational reliability, and long-term mechanical stability. Designed for demanding electronic environments, Novoflex products help maintain organized, secure, and serviceable PCB assemblies.NOVOFLEX |
