NOVOFLEX | Snapper Capacitor Holder
Tool-Free Capacitor Retention System
Secure and vibration-resistant mounting of aluminium electrolytic capacitors in electronic assemblies where installation speed, electrical insulation, and long-term component stability are critical. Designed for telecom systems, power supply assemblies, industrial control panels, automotive electronics, networking equipment, railway electronics, aviation systems, and high-density PCB assemblies requiring dependable capacitor retention.
In electronic systems exposed to vibration, thermal cycling, and continuous operation, capacitor instability gradually creates mechanical stress on solder joints, PCB tracks, and component housings. Conventional metal clamps increase assembly complexity, add conductive elements, and may damage capacitor sleeves during servicing or replacement. Novoflex Snapper Capacitor Holder is engineered to provide secure reusable capacitor retention while protecting sensitive components and simplifying assembly operations through a one-piece snap-lock design.
Key Features
- One-piece construction eliminates additional fastening hardware.
- Reusable locking jaws simplify servicing and capacitor replacement.
- Nylon 6 construction offers electrical insulation and corrosion resistance.
- Protects capacitor sleeve and housing from mechanical damage.
- UL94 V-2 flame-retardant material enhances operational safety.
- Non-conductive and non-magnetic structure.
- Resistant to fungus, corrosion, and mild acids.
- Suitable for high-density electronic assemblies.
Technical Specifications
- Material: Nylon 6 (Polyamide)
- Flammability Rating: UL94 V-2
- Operating Temperature: -25°C to +85°C
- Standard Colour: Natural White
- Inside Diameter Max (3 Teeth Engaged): 36.5 mm
- Inside Diameter Min (3 Teeth Fully Engaged): 35 mm
- Installation Type: Snap Lock
- Electrical Properties: Non-Conductive, Non-Magnetic
- Resistance Properties: Fungus, Corrosion, Mild Acid Resistant
- Reusability: Multiple Reuse Capability
- Standard Packing: 100 Nos.
- Part Number: SCH-1

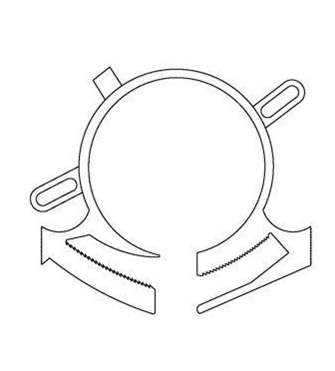

Product Dimensions
| Novoflex Part No. | Inside Diameter Max 3 teeth engaged | Inside Diameter Min 3 teeth fully engaged | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|
| SCH-1 | 36.5 mm | 35 mm | 100 |
Standard & Custom Colours
Applications
- Power supply assemblies
- Telecom equipment
- Industrial control panels
- Automotive electronics
- Railway electronics
- Aviation systems
- Consumer electronics
- Electric metering systems
- Networking equipment
- High-density PCB assemblies
Use When
- Aluminium electrolytic capacitors require vibration-resistant mounting.
- Fast assembly without screws or metal clamps is preferred.
- Repeated servicing or capacitor replacement is expected.
- Electrical insulation around capacitor mounting is necessary.
- Compact electronic assemblies require simplified component retention.
Avoid When
- Capacitor diameters exceed specified holding range.
- Heavy structural load support is required.
- Operating temperatures exceed specified limits.
- Permanent non-removable mounting systems are preferred.
