NOVOFLEX | Double Locking Style PCB Supports
Dual-lock PCB mounting for enhanced structural stability
Designed for electronic assemblies, industrial controls, appliances, and compact equipment where printed circuit boards require highly stable, vibration-resistant, and insulated mounting with consistent spacing for airflow and maintenance access.
Key Features
- Dual locking design for enhanced PCB stability
- Tool-free snap-fit installation
- Non-conductive and non-magnetic construction
- Resistant to fungus, corrosion, and mild acids
- Suitable for high-density electronic assemblies
- 7.
Technical Specifications
- Material: Nylon 6 (Polyamide)
- PCB Hole Compatibility: 4 mm
- Chassis Hole Compatibility: 4 mm
- PCB & Chassis Thickness Compatibility: 1.6 mm
- Operating Temperature: -25°C to +85°C
- Flammability Rating: UL94 V-2
- Installation Type: Dual Locking Snap-Fit
- Standard Colour: Natural White
- Chemical Resistance: Resistant to Fungus, Corrosion & Mild Acids
- Colour: white

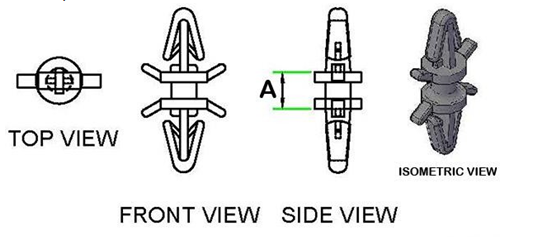

Product Dimensions
| Novoflex Part No. | Spacing Height (A) - mm | PCB/Chassis Hole Dia - mm | PCB/Chassis Thickness - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|
| PCBS 48 | 5.2 | 4.0 | 1.6 | 100 | ||
| PCBS 64 | 7.5 | 4.0 | 1.6 | 100 | ||
| PCBS 95 | 9.7 | 4.0 | 1.6 | 100 | ||
| PCBS 115 | 11.8 | 4.0 | 1.6 | 100 | ||
| PCBS 127 | 12.7 | 4.0 | 1.6 | 100 | ||
| PCBS 159 | 16.2 | 4.0 | 1.6 | 100 | ||
| PCBS 254 | 25.5 | 4.0 | 1.6 | 100 |
Standard & Custom Colours
Applications
- Industrial control systems
- Consumer electronics assemblies
- PCB prototyping setups
- Compact electronic devices
- Electrical control panels
- High-density circuit board installations
Use When
- Enhanced PCB stability is required
- Vibration resistance is important
- Tool-free assembly improves production efficiency
- Electrical insulation between PCB and chassis is necessary
- 10.
Avoid When
- Heavy structural load-bearing support is required
- Operating temperatures exceed specifications
- Metal mounting hardware is mandatory
- Severe mechanical shock environments require reinforced supports
- 11.
Why Novoflex
Novoflex develops precision mounting systems engineered for long-term electronic reliability and assembly efficiency. By combining durable polymer materials with installation-focused designs, Novoflex PCB support solutions improve structural stability while simplifying production and maintenance processes.NOVOFLEX |
