NOVOFLEX | MICRO SUPPORT POST
Compact PCB Mounting with Secure Snap-Fit Retention
Compact electronic assemblies, control panels, industrial equipment, and PCB mounting applications where stable positioning, space efficiency, and easy servicing are critical.
Key Features
- Precision snap-fit locking mechanism for stable PCB mounting
- Fits into 3.2 mm diameter chassis holes
- Compatible with PCB and chassis thicknesses up to 1.6 mm
- Compact design optimized for space-constrained assemblies
- Easy PCB removal for servicing and modifications
- Resistant to fungus, corrosion, and mild acids
- Non-conductive and non-magnetic construction
- Natural white colour for visibility and inspection
Technical Specifications
- Product Type: Micro Support Post
- Material: Nylon 6 (Polyamide)
- Mounting Type: Snap-Fit Locking
- Hole Compatibility: 3.2 mm Diameter
- PCB Thickness Compatibility: Up to 1.6 mm
- Chassis Thickness Compatibility: Up to 1.6 mm
- Installation Type: Tool-Free
- Operating Temperature: -25°C to +85°C
- Flammability Rating: UL94 V-2
- Resistance Properties: Fungus, Corrosion, Mild Acids
- Electrical Properties: Non-Conductive
- Magnetic Properties: Non-Magnetic
- Standard Colour: Natural White
Product Dimensions

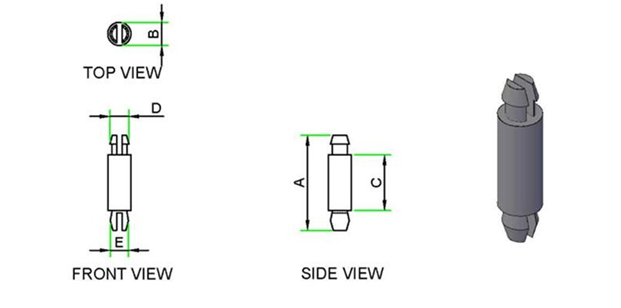

| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Spacing Length (C) - mm | Lock Head Dia (D) - mm | Lock Head Dia (E) - mm | Push Hole Dia - mm | Panel Thickness - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|---|
| MSPM 111 | 18.8 | 4.6 | 11 | 3.8 | 3.5 | 3.2 | 1.6 | 100 |
Standard & Custom Colours
Applications
- Compact electronic devices
- PCB mounting in control panels
- Industrial machinery
- Consumer electronics
- Electrical appliances
- Automation systems
- Prototyping assemblies
- Chassis-mounted PCB systems
Use When
- Compact PCB mounting is required
- Fast tool-free installation is preferred
- Easy PCB servicing and removal are necessary
- Stable PCB spacing must be maintained
- Non-conductive mounting components are required
Avoid When
- PCB or chassis thickness exceeds 1.6 mm
- Hole diameter differs from 3.2 mm compatibility
- Heavy structural load support is required
- Applications exceed specified temperature limits
Why Novoflex
Novoflex PCB mounting solutions are designed to simplify electronic assembly while improving long-term reliability and serviceability. Engineered for precision retention, efficient installation, and stable positioning, Novoflex products help manufacturers reduce assembly time, improve maintenance access, and maintain operational consistency in compact electronic systems.NOVOFLEX |
