NOVOFLEX | TEAR DROP BOARD SUPPORT
Compact Snap-Fit PCB Mounting for Fast Assembly
Compact electronic assemblies, control panels, consumer electronics, and PCB mounting applications where rapid installation, stable board positioning, and space-efficient support are essential.
Key Features
- Teardrop nose design for simplified insertion and secure locking
- Snap-fit mechanism for quick tool-free installation
- Compact structure optimized for dense electronic assemblies
- UL94 V-2 compliant flame resistance
- Resistant to fungus, corrosion, and mild acids
- Non-conductive and non-magnetic construction
- Natural white colour for inspection visibility and alignment accuracy
Technical Specifications
- Product Type: Tear Drop Board Support
- Material: Nylon 6 (Polyamide)
- Mounting Type: Snap-Fit
- Hole Compatibility: 2.5 mm Diameter
- PCB Thickness Compatibility: Up to 1.6 mm
- Installation Type: Tool-Free
- Operating Temperature: -25°C to +85°C
- Flammability Rating: UL94 V-2
- Resistance Properties: Fungus, Corrosion, Mild Acids
- Electrical Properties: Non-Conductive
- Magnetic Properties: Non-Magnetic
- Standard Colour: Natural White

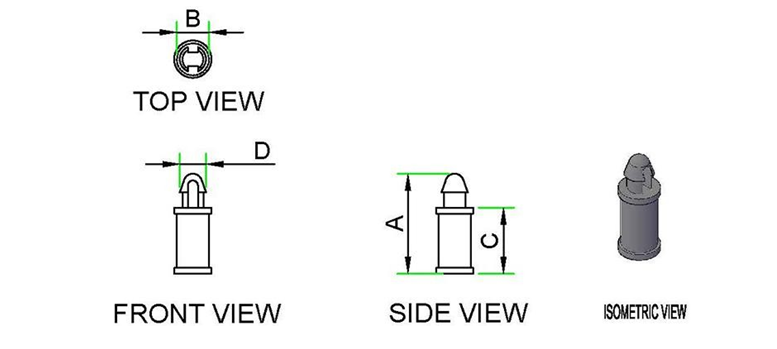

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Spacing Length (C) - mm | Lock Head Dia (D) - mm | Chassis Thickness - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| PSTE 79 | 11.8 | 3.8 | 8 | 3.5 | 1.6 | 100 |
Standard & Custom Colours
Applications
- Consumer electronics
- Industrial equipment
- Control panels
- Compact PCB assemblies
- Electrical appliances
- Automation systems
- Prototyping setups
- Electronic chassis assemblies
Use When
- Fast snap-fit PCB installation is required
- Compact assembly space is limited
- Stable PCB positioning is critical
- Tool-free servicing and maintenance are preferred
- Lightweight non-conductive supports are required
Avoid When
- PCB thickness exceeds 1.6 mm
- Hole diameter differs from 2.5 mm compatibility
- Structural load-bearing applications are required
- Operating temperatures exceed specified limits
Why Novoflex
Novoflex PCB mounting solutions are engineered to improve assembly efficiency, positioning stability, and maintenance accessibility across modern electronic systems. By combining precision locking mechanisms with durable engineering materials, Novoflex products help manufacturers reduce installation complexity while maintaining long-term operational reliability.NOVOFLEX |
