NOVOFLEX | Edge Saddles
Secure Cable Routing Along Panel Edges
Control panels, electronic enclosures, machinery, server racks, and industrial assemblies where cables must be routed safely along sharp panel edges without additional fastening hardware.
Key Features
- Secure edge-mounted cable management without additional fasteners
- Flexible wing design for quick insertion and cable retention
- Protects cables from sharp panel edge abrasion
- Lightweight, non-conductive Nylon 6 construction
- Resistant to corrosion, fungus, and mild acids
Technical Specifications
- Product Type: Edge Saddle
- Material: Nylon 6 (Polyamide)
- Panel Thickness Compatibility: 1.2 mm to 1.6 mm
- Operating Temperature: -25°C to +85°C
- Resistance Properties: Corrosion, Fungus, Mild Acid Resistant
- Electrical Properties: Non-Conductive
- Standard Colour: Natural White

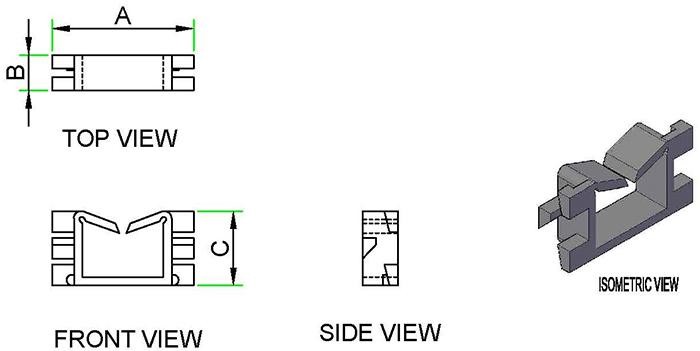

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Height (C) - mm | Panel Thickness - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| EDS 12 | 20 | 5 | 10.5 | 1.2 – 1.6 | 100 |
Standard & Custom Colours
Applications
- Electrical control panels
- Industrial machinery
- Automotive assemblies
- Aerospace cable routing
- Data centres and server racks
- Electronic enclosures and appliances
- Panel edge wire management systems
Use When
- Cables must be routed along panel edges safely
- Abrasion protection is required near sharp surfaces
- Fast tool-free installation is preferred
- Clean and organized cable routing is necessary
- Lightweight non-conductive cable retention is required
Avoid When
- Panel thickness falls outside 1.2 mm to 1.6 mm
- Heavy cable load retention is required
- Exposure temperatures exceed +85°C continuously
- Structural fastening applications are needed
Why Novoflex
Novoflex cable management solutions are engineered to solve practical installation challenges in industrial and electronic environments. Designed for fast assembly, secure retention, and long-term durability, Novoflex products help OEMs and manufacturers maintain organized, protected, and serviceable wiring systems across demanding applications.NOVOFLEX |
