NOVOFLEX | MINI CARD SPACER SUPPORT
Stable PCB Spacing for Compact Electronic Assemblies
Electronic assemblies, compact devices, control panels, appliances, and PCB mounting applications where controlled board spacing, positional stability, and lightweight non-conductive support are essential.
Key Features
- Large bottom base for enhanced PCB stability
- Multiple spacing lengths for versatile mounting requirements
- Lightweight compact structure for dense assemblies
- Snap-fit installation for quick assembly
- Non-conductive and non-magnetic construction
- Resistant to fungus, corrosion, and mild acids
- Natural white colour for visibility during installation and inspection
Technical Specifications
- Product Type: Mini Card Spacer Support
- Material: Nylon 6 (Polyamide)
- Mounting Type: Snap-Fit
- Available Spacing Lengths: 2.5 mm, 4.0 mm, 17.0 mm
- Operating Temperature: -25°C to +85°C
- Flammability Rating: UL94 V-2
- Resistance Properties: Fungus, Corrosion, Mild Acids
- Electrical Properties: Non-Conductive
- Magnetic Properties: Non-Magnetic
- Standard Colour: Natural White
- Suitable PCB Thickness: 2.2 mm
Product Dimensions

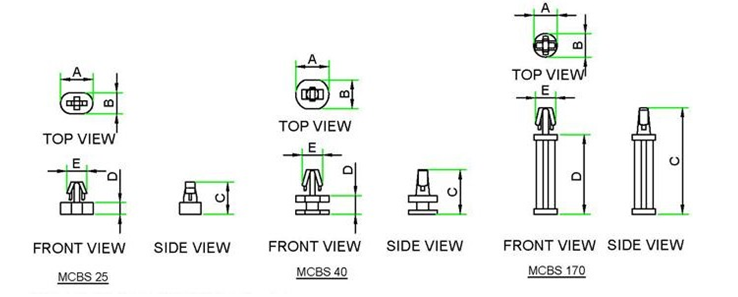

| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Height (C) - mm | Spacing Length (D) - mm | PCB Hole Dia (E) - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| MCBS 25 | 6.9 | 5.6 | 7.8 | 2.5 | 3 | 100 | ||
| MCBS 40 | 7.1 | 6.1 | 9.5 | 4 | 3 | 100 | ||
| MCBS 170 | 5 | 5 | 22.7 | 17 | 3 | 100 |
Standard & Custom Colours
Applications
- PCB spacing in electronic assemblies
- Compact electronic devices
- Control panels
- Industrial machinery
- Consumer appliances
- Prototyping setups
- Electrical systems
- PCB support in dense assemblies
Use When
- Accurate PCB spacing is required
- Lightweight non-conductive supports are preferred
- Compact assembly space is limited
- Stable PCB positioning is critical
- Fast installation and servicing are necessary
Avoid When
- Heavy structural load-bearing support is required
- Application temperatures exceed specified limits
- Metal grounding spacers are mandatory
- PCB spacing requirements exceed available lengths
Why Novoflex
Novoflex PCB support solutions are designed to improve structural stability, assembly efficiency, and long-term reliability across electronic applications. By combining engineered spacing control with durable non-conductive materials, Novoflex products help manufacturers achieve organized, service-friendly, and vibration-resistant PCB installations.NOVOFLEX |
