NOVOFLEX | Screw Mount Tube PCB Support
Secure PCB Mounting with Screw Stability
Stable PCB mounting in industrial and vibration-prone electronic environments where rigid chassis fixation, controlled spacing, and long-term structural reliability are essential. Designed for telecom systems, automotive electronics, railway electronics, industrial control panels, aviation assemblies, instrumentation systems, and networking equipment requiring dependable PCB positioning under dynamic operating conditions.
In electronic assemblies exposed to vibration, thermal cycling, and repeated servicing, unstable PCB mounting gradually transfers stress into connectors, solder joints, and circuit pathways. Conventional lightweight mounting methods may allow lateral movement that compromises long-term assembly integrity and operational reliability. Novoflex Screw Mount Tube PCB Support is engineered to provide rigid chassis-side fixation combined with push-fit PCB retention, ensuring stable board positioning while simplifying installation and maintenance operations.
Key Features
- Screw-mounted chassis fixation improves structural stability.
- Push-fit PCB locking enables quick assembly and servicing.
- Prevents lateral PCB movement in vibration-prone environments.
- Nylon 6 construction provides corrosion resistance and electrical insulation.
- UL94 V-2 flame-retardant material improves operational safety.
- Non-conductive and non-magnetic structure.
- Available in multiple spacing heights.
- Suitable for industrial and transport electronics.
Technical Specifications
- Mounting Type: Screw Mount + Push Fit
- Electrical Properties: Non-Conductive, Non-Magnetic
- Resistance Properties: Fungus, Corrosion, Mild Acid Resistant
- Available Spacing Heights: 4.8 mm, 9.5 mm, 12.7 mm
- Push Hole Diameter: 4 mm
- Hole Diameter: 3.2 mm
- PCB Hole Dia: 4.0 mm
- PCB Thickness: 1.0 to 2.0 mm
- Chassis Thickness: 0.8 to 2.0 mm
- Standard Packing: 100 Nos.

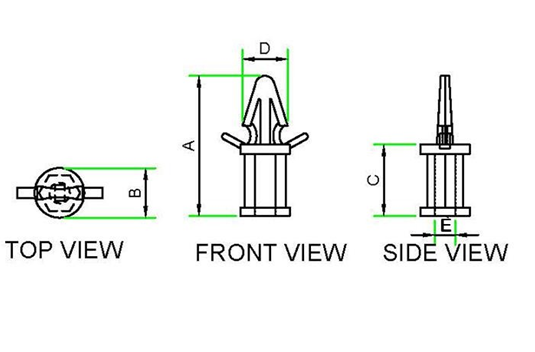

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Spacing Length (C) - mm | Lock Head Dia (D) - mm | Hole Dia (E) - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| PCBM 48 | 14.5 | 6.3 | 4.8 | 5.2 | 2.3 | 100 | ||
| PCBM 95 | 18.3 | 6.5 | 9.3 | 5.7 | 2.7 | 100 | ||
| PCBM 127 | 22.2 | 6.9 | 12.7 | 6.2 | 2.8 | 100 |
Standard & Custom Colours
Applications
- Telecom equipment assemblies
- Automotive electronics
- Railway electronics
- Aviation systems
- Industrial control panels
- Consumer electronics
- Electric metering systems
- Power plant electronics
- Networking equipment
- Electronic instrumentation systems
Use When
- PCB stability under vibration is critical.
- Chassis-side rigid fixation is required.
- Fast PCB servicing or replacement is needed.
- Controlled PCB spacing is necessary for airflow and insulation.
- Electronics operate in industrial or transport environments.
Avoid When
- Completely tool-free mounting is required.
- Ultra-light temporary PCB mounting is sufficient.
- Space constraints prevent screw access.
- Applications require adjustable PCB positioning after installation.
Why Novoflex
NOVOFLEX designs engineered PCB mounting systems built for industrial reliability, installation efficiency, and long-term electronic stability. Every support component is developed to minimize movement, improve structural integrity, and simplify assembly across automotive, telecom, industrial, and electronic applications.NOVOFLEX |
