NOVOFLEX | Top Split PCB Supports
Tool-Free PCB Spacing & Retention
Reliable PCB retention and controlled board spacing in compact electronic assemblies where installation speed, electrical insulation, and structural stability are critical. Designed for telecom systems, industrial control panels, networking equipment, instrumentation assemblies, automation systems, consumer electronics, and high-density PCB installations requiring lightweight and service-friendly support structures.
In modern electronic assemblies, PCB instability often develops through vibration, thermal cycling, and inconsistent mounting pressure. Improper board support gradually creates connector stress, restricted airflow, alignment inconsistencies, and servicing difficulties inside compact systems. Conventional mounting methods may increase assembly complexity while reducing maintenance accessibility. Novoflex Top Split PCB Supports are engineered to provide secure PCB retention, controlled spacing, and fast snap-fit installation while maintaining long-term structural stability across demanding electronic environments.
Key Features
- Split-head locking design provides secure PCB retention.
- Snap-fit mounting enables quick tool-free installation.
- Maintains stable PCB-to-chassis spacing.
- Nylon 6 construction resists corrosion, fungus, and mild acids.
- UL94 V-2 rated material enhances fire safety in electronic assemblies.
- Non-conductive and non-magnetic structure.
- Lightweight and vibration-resistant support design.
- Suitable for compact and high-density electronic assemblies.
Technical Specifications
- Material: Nylon 6 (Polyamide)
- Flammability Rating: UL94 V-2
- Operating Temperature: -25°C to +85°C
- Standard Colour: Natural White
- Mounting Type: Snap-Fit
- Electrical Properties: Non-Conductive, Non-Magnetic
- Resistance Properties: Corrosion, Fungus & Mild Acid Resistant
- Installation Method: Tool-Free
- Application Type: PCB Support & Spacing
Product Dimensions

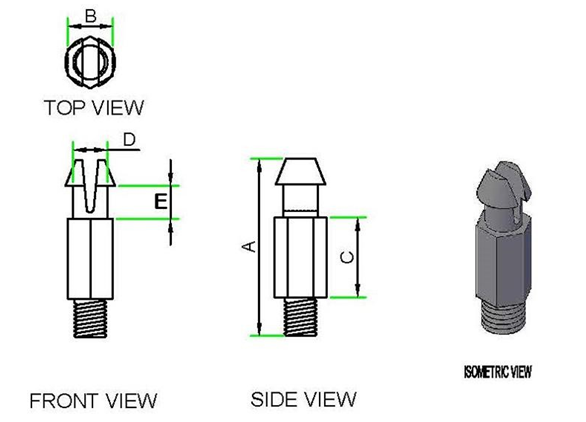

| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Spacing Length (C) - mm | Push Hole Dia (D) - mm | Chassis Thickness (E) - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| PCB 124 | 27.5 | 7 | 12.4 | 5.3 | 5.1 | 100 |
Standard & Custom Colours
Applications
- Industrial control panels
- Telecom equipment
- Consumer electronics
- PCB prototyping systems
- Networking equipment
- Power supply assemblies
- Instrumentation systems
- Compact electronic enclosures
- Automation systems
Use When
- Fast PCB installation and servicing are required.
- Consistent PCB spacing must be maintained.
- Electrical insulation between PCB and chassis is necessary.
- Compact assemblies require lightweight support structures.
- High-density electronic systems need organized PCB retention.
Avoid When
- Heavy structural load-bearing support is required.
- Metal conductive supports are mandatory.
- Operating temperatures exceed specified limits.
- Permanent bonded mounting systems are preferred.
Why Novoflex
NOVOFLEX develops engineered PCB support and cable management systems built for industrial reliability, assembly efficiency, and long-term operational stability. Every component is designed to simplify installation, reduce failure points, and maintain structural precision inside demanding electronic environments.NOVOFLEX |
