NOVOFLEX | LED Spacer
Precise LED Alignment and Elevation
LED assemblies, electronic displays, control panels, automotive electronics, and lighting systems where uniform LED positioning, stable mounting, and assembly consistency are critical.
Key Features
- Maintains uniform LED spacing and alignment
- Prevents LED bending and positional instability
- Simplifies manual assembly and reduces rework
- Durable Nylon 6 construction with environmental resistance
- UV-Resistant Black finish for enhanced durability
Technical Specifications
- Product Type: LED Spacer
- Material: Nylon 6 (Polyamide)
- Operating Temperature: -25°C to +85°C
- Flammability Rating: UL94 V-2
- Resistance Properties: Fungus, Corrosion, Mild Acid Resistant
- Installation Type: Manual Push Fit
- Standard Colour: UV-Resistant Black

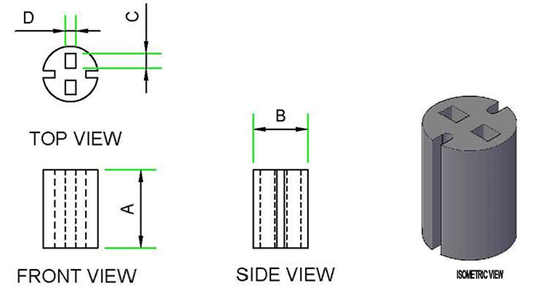

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Hole Length (C) - mm | Hole Width (D) - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| LEDS 2 70 | 6.5 | 4.6 | 1.2 | 0.9 | 100 |
Standard & Custom Colours
Applications
- LED display assemblies
- Retail lighting systems
- Electronic control panels
- Automotive lighting electronics
- Railway and aviation electronics
- Networking equipment
- LED signage and display systems
- Electric metering devices
Use When
- Uniform LED spacing is required
- LED alignment consistency is critical
- Fast production assembly is necessary
- Mechanical support for LED leads is needed
- UV-resistant non-conductive support components are preferred
Avoid When
- Custom non-standard spacing geometry is required
- Operating temperatures exceed +85°C continuously
- Heavy structural load support is necessary
- Metal conductive mounting solutions are required
Why Novoflex
Novoflex electronic support components are engineered to improve assembly precision, operational stability, and production efficiency across industrial electronic systems. Designed for reliability under demanding conditions, Novoflex solutions help manufacturers maintain consistent quality while reducing assembly errors and maintenance challenges.NOVOFLEX |
