NOVOFLEX | PC Board Holder
Permanent PCB Locking with Serviceable Access
Electronic assemblies, industrial control systems, compact appliances, and chassis-mounted PCB applications where stable board retention, controlled spacing, and maintenance accessibility are critical.
Key Features
- Permanent snap-lock mechanism for stable PCB retention
- Tool-free installation and servicing access
- Fixed 13.3 mm spacing for consistent board positioning
- Non-conductive and corrosion-resistant Nylon 6 construction
- UL94 V-2 flame-retardant performance for electronic safety
Technical Specifications
- Product Type: PC Board Holder
- Material: Nylon 6 (Polyamide)
- PCB Hole Diameter: 3.2 mm
- PCB Thickness Compatibility: 1.6 mm
- Chassis Thickness Compatibility: 1.6 mm
- Fixed Spacing Height: 13.3 mm
- Operating Temperature: -25°C to +85°C
- Flammability Rating: UL94 V-2
- Resistance Properties: Corrosion, Fungus, Mild Acid Resistant
- Electrical Properties: Non-Conductive
- Standard Colour: Natural White

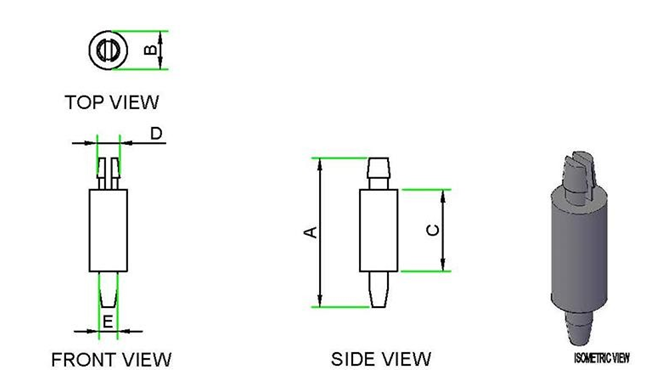

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Spacing Length (C) - mm | Lock Head Dia (D) - mm | Lock Head Dia (E) - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| PCBH 113 | 24.4 | 6.2 | 13.3 | 3.8 | 2.9 | 100 |
Standard & Custom Colours
Applications
- PCB mounting in industrial control panels
- Electronic assembly and prototyping
- Household and commercial appliances
- Compact electronic enclosures
- Instrumentation and automation systems
- High-density electronic assemblies
Use When
- Secure PCB retention is required in vibration-prone systems
- Fast assembly and maintenance access are important
- Uniform PCB spacing is necessary for airflow and alignment
- Non-conductive mounting hardware is preferred
- Compact electronic packaging requires organized board positioning
Avoid When
- PCB thickness exceeds 1.6 mm
- Operating temperatures exceed +85°C continuously
- Adjustable spacing heights are required
- Heavy mechanical load-bearing support is needed
Why Novoflex
Novoflex PCB support solutions are engineered for precision electronic assembly environments where stability, installation efficiency, and long-term reliability are essential. Built using industrial-grade engineered polymers, Novoflex components help OEMs and manufacturers reduce assembly complexity while improving structural consistency across electronic systems.NOVOFLEX |
