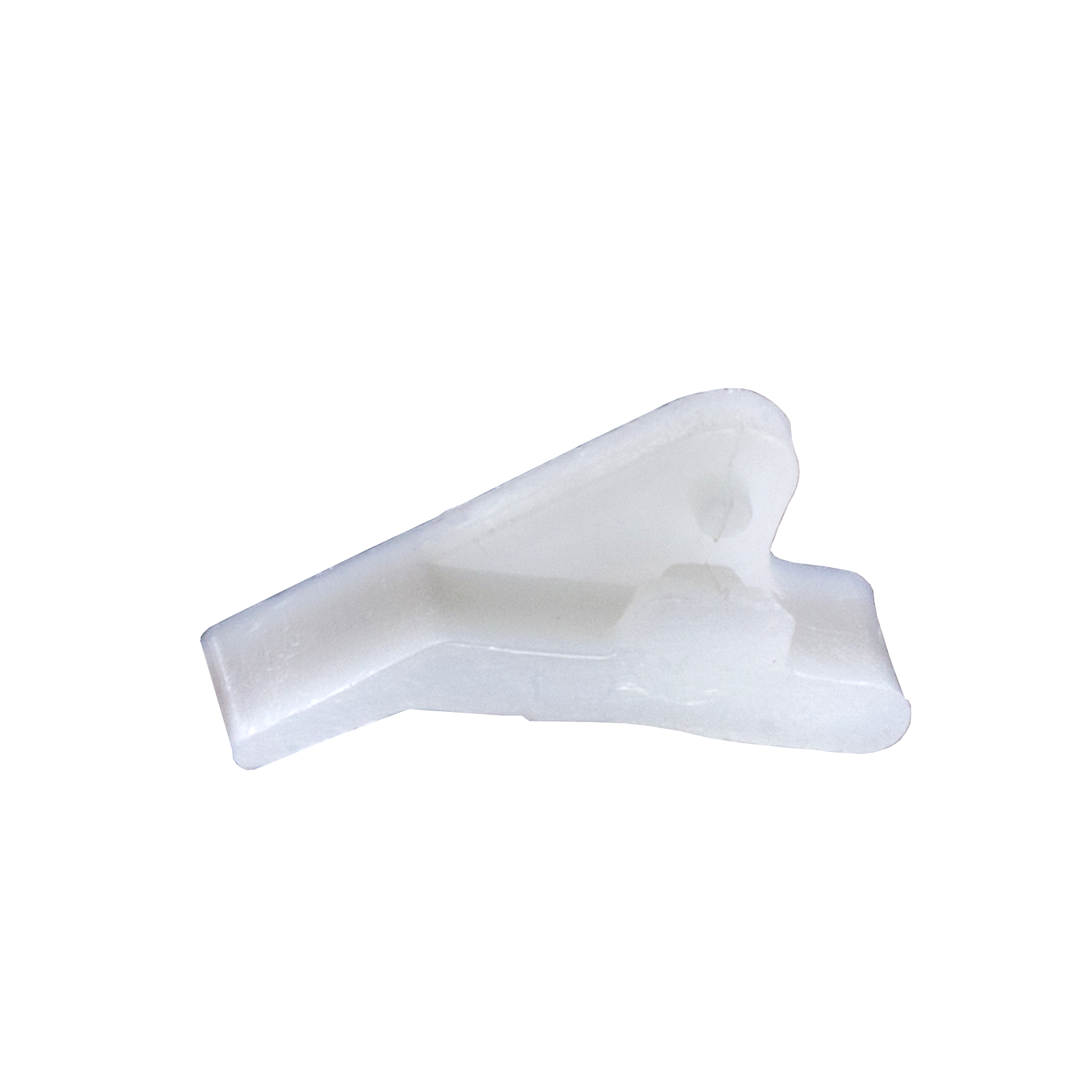

NOVOFLEX | PCB Ejector CBE 2
Tool-Free PCB Extraction for High-Density Assemblies
Safe and efficient PCB extraction in compact electronic assemblies where board density, connector protection, and maintenance accessibility are critical. Designed for telecom systems, industrial electronics, networking equipment, automotive electronics, control panels, and rack-mounted PCB assemblies requiring reliable tool-free board removal.
In high-density electronic systems, PCB extraction often places excessive stress on connectors, solder joints, and surrounding components. Manual pulling methods increase the risk of board flexing, connector damage, and uneven extraction force, especially within tightly packed assemblies. Novoflex PCB Ejector CBE 2 is engineered to provide controlled, non-conductive, and tool-free PCB removal while improving servicing efficiency and protecting sensitive electronic assemblies.
Key Features
- Flared grip tab enables safe and controlled PCB extraction.
- Snap-fit mounting eliminates additional hardware requirements.
- Compact design optimized for high-density assemblies.
- Non-conductive Nylon 6 construction improves electrical safety.
- Resistant to fungus, corrosion, and mild acids.
- Tool-free servicing improves maintenance efficiency.
- Reduces connector and solder joint stress during removal.
- Suitable for repeated servicing
Technical Specifications
- Product Type: PCB Ejector
- Part Number: CBE 2
- Material: Nylon 6 (Polyamide)
- Flammability Rating: UL94 V-2
- Operating Temperature: -25°C to +85°C
- Standard Colour: Natural White
- Properties: Non-Conductive, Corrosion Resistant

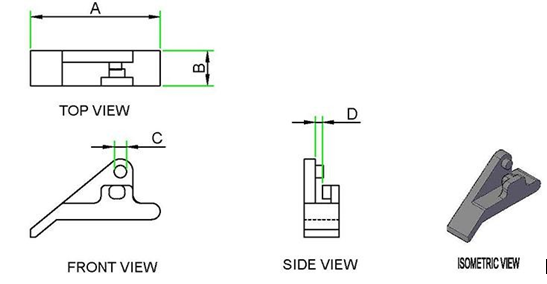

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | PCB Hole Dia (C)- mm | PCB Thickness (D)-mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| CBE 2 | 28.6 | 7.9 | 2.5 | 1.6 | 100 |
Standard & Custom Colours
Applications
- Telecom equipment
- Industrial control panels
- Consumer electronics
- Networking systems
- Power plant electronics
- Railway electronic assemblies
- Aviation electronic systems
- Electric metering devices
- Automotive electronics
- PCB rack systems
Use When
- PCBs require frequent servicing or replacement.
- High-density assemblies restrict manual board handling.
- Safe non-metallic extraction systems are preferred.
- Tool-free PCB maintenance improves service efficiency.
- Connector stress reduction is important during removal.
Avoid When
- PCB thickness differs significantly from specified dimensions.
- Structural load-bearing support is required.
- High-temperature environments exceed material limits.
- Permanent non-removable PCB mounting is intended.
Why Novoflex
NOVOFLEX develops precision-engineered PCB support and cable management solutions designed for industrial reliability and assembly efficiency. With decades of manufacturing expertise, Novoflex products are trusted across electronics, telecom, automotive, and industrial sectors where durability, serviceability, and installation precision are critical.NOVOFLEX |
