NOVOFLEX | PCB Ejector CBE-3
Efficient and controlled PCB extraction in compact electronic systems where servicing accessibility, connector protection, and assembly density are critical. Designed for telecom equipment, industrial control systems, instrumentation panels, networking hardware, automation systems, and modular electronic assemblies requiring safe and repeatable PCB handling.
In high-density electronic assemblies, PCB removal is often one of the most mechanically stressful maintenance operations. Uneven pulling force, restricted access, and improper handling can gradually damage connectors, solder joints, and PCB edges during repeated servicing cycles. Conventional extraction methods also increase the risk of electrostatic and mechanical interference within sensitive electronic systems. Novoflex PCB Ejector CBE-3 is engineered to provide controlled, tool-free PCB extraction while improving serviceability and protecting electronic assembly integrity.
Key Features
- Tool-free PCB insertion and extraction mechanism.
- Minimizes stress on connectors and solder joints.
- Durable Nylon 6 (Polyamide) construction.
- Electrically non-conductive and non-magnetic.
- Suitable for repeated servicing cycles.
- Snap-fit installation design.
- Improves maintenance accessibility.
- Supports high-density electronic assemblies.
Technical Specifications
- Product Type: PCB Ejector CBE-3
- Material: Nylon 6 (Polyamide)
- Operating Temperature: -25°C to +85°C
- Installation Type: Snap-Fit
- Electrical Properties: Non-Conductive
- Magnetic Properties: Non-Magnetic
- Standard Colour: Natural White
- Application Type: PCB Extraction & Handling

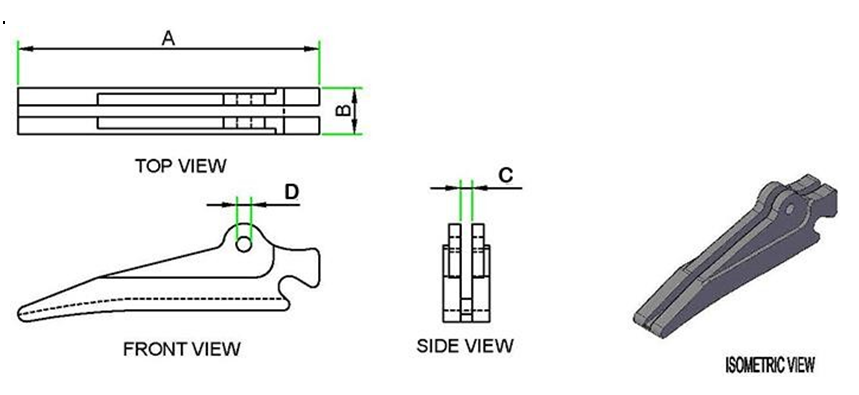

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | PCB Hole Dia (C)- mm | PCB Thickness (D)- mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| CBE 3 | 51 | 7.8 | 2.5 | 2.0 | 100 |
Standard & Custom Colours
Applications
- Telecom equipment and racks
- Industrial control systems
- Embedded electronics
- Instrumentation panels
- Modular PCB assemblies
- Networking hardware
- Power electronics systems
- Automation equipment
Use When
- PCBs require frequent servicing or replacement.
- Assemblies are densely packed.
- Connector protection is critical.
- Non-conductive extraction solutions are required.
- Maintenance efficiency must be improved.
Avoid When
- Permanent non-removable PCB mounting is required.
- PCB layouts lack compatible mounting provisions.
- Heavy mechanical load-bearing support is needed.
- Operating temperatures exceed specified limits.
