NOVOFLEX | Adhesive Backed Adjustable Cable Clamps
Fixed-size clamps limit flexibility during installation and make rework difficult. In dynamic wiring environments, installers need adjustability without compromising hold.
Novoflex Adjustable Cable Clamps are engineered with a ladder-style locking mechanism that allows quick adjustment, release, and refastening. Designed to accommodate cable bundles from 5 mm to 35 mm, these clamps provide a secure yet adaptable solution for routing cables and holding components such as capacitors.
Available in adhesive-backed, screw-mounted, and push-mounted variants, they deliver installation flexibility across a wide range of surfaces and load conditions.
Key Features
- Ladder-Style Adjustment Mechanism-Enables fast size adjustment with the ability to reopen and refasten.
- Wide Cable Compatibility-Supports bundle diameters from 5 mm to 35 mm.
- Multiple Mounting Options-Available in adhesive, screw, and push-mount configurations.
- Secure Component Holding-Suitable for cables as well as cylindrical components like capacitors.
- Durable Nylon 6 Construction-Ensures long-term performance in electrical and industrial environments.
- Temperature Range-Operates from -25°C to +85°C.
Technical Specifications
- Product Type: Adjustable Cable Clamp
- Material: Nylon 6
- Locking Mechanism: Ladder-Style Adjustable Locking
- Cable Bundle Diameter: 5 mm to 35 mm
- Adjustment: Adjustable, Releasable & Refastenable
- Mounting Options: Adhesive-Backed, Screw-Mounted & Push-Mounted
- Operating Temperature – Screw / Push Mount: -25°C to +85°C
- Adhesive Temperature Limit: Up to +52°C
- Colour: Natural White
- Component Compatibility: Cables, Wire Bundles & Cylindrical Components such as Capacitors
- Installation: Tool-Free for Push-Mount & Adhesive Variants; Screw-Fixed for Screw-Mount Variant
- Reusability: Releasable and Refastenable
- Primary Function: Cable Routing, Bundle Retention & Component Mounting
- Recommended Applications: Electrical Panels, Wiring Harnesses, Electronics & Industrial Assemblies

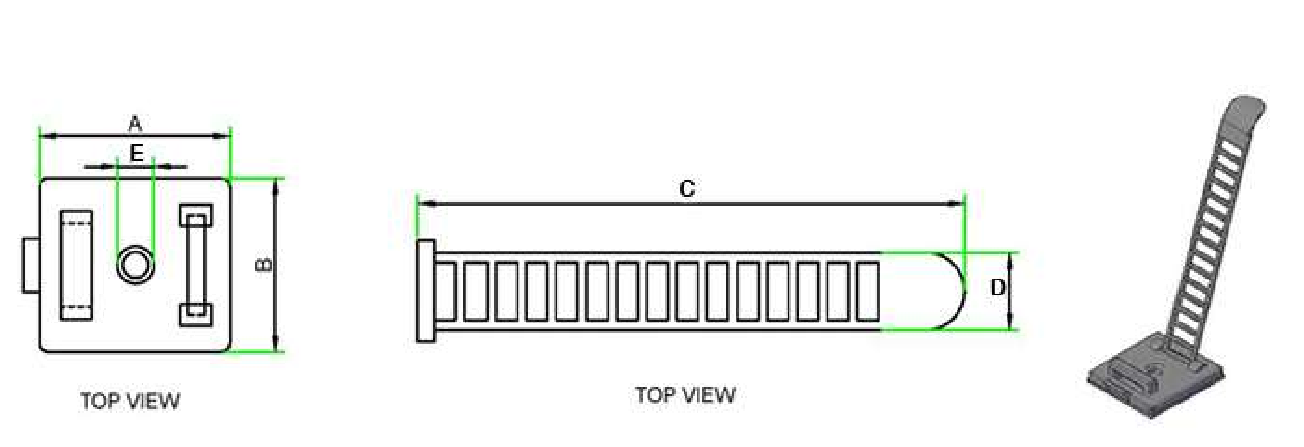

Product Dimensions
| Novoflex Part No. | Plate Length (A) - mm | Plate Width (B) - mm | Ladder Length (C) - mm | Ladder Width (D) - mm | Screw Hole Dia (E) - mm | Cable Dia Range - mm | Mounting Method | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|---|
| ACC 1 (A) | 30 | 21 | 85 | 12 | - | 5.0 - 21.0 | Adhesive | 100 | ||
| ACC 1 (S) | 30 | 21 | 85 | 12 | 3.6 | 5.0 - 21.0 | Screw | 100 | ||
| ACC 2 (A) | 30 | 21 | 125 | 12 | - | 5.0 - 35.0 | Adhesive | 100 | ||
| ACC 2 (S) | 30 | 21 | 125 | 12 | 3.6 | 5.0 - 35.0 | Screw | 100 |
Standard & Custom Colours
Applications
- Electrical Panels & Control Cabinets
- Wiring Harness Management
- Electronics & Component Mounting
- Installations requiring frequent adjustments or re-routing
Use When
- Cable sizes vary or are not fixed
- Reusability and adjustment are required
- Mixed mounting conditions exist
Avoid When
- Adhesive → smooth surfaces, light loads
- Screw → high strength, vibration environments
- Push-mount → quick panel installation
Why Novoflex
Cable management systems must adapt to changing layouts. Novoflex ensures secure retention with reusability, reducing installation time and enabling flexible system design.
