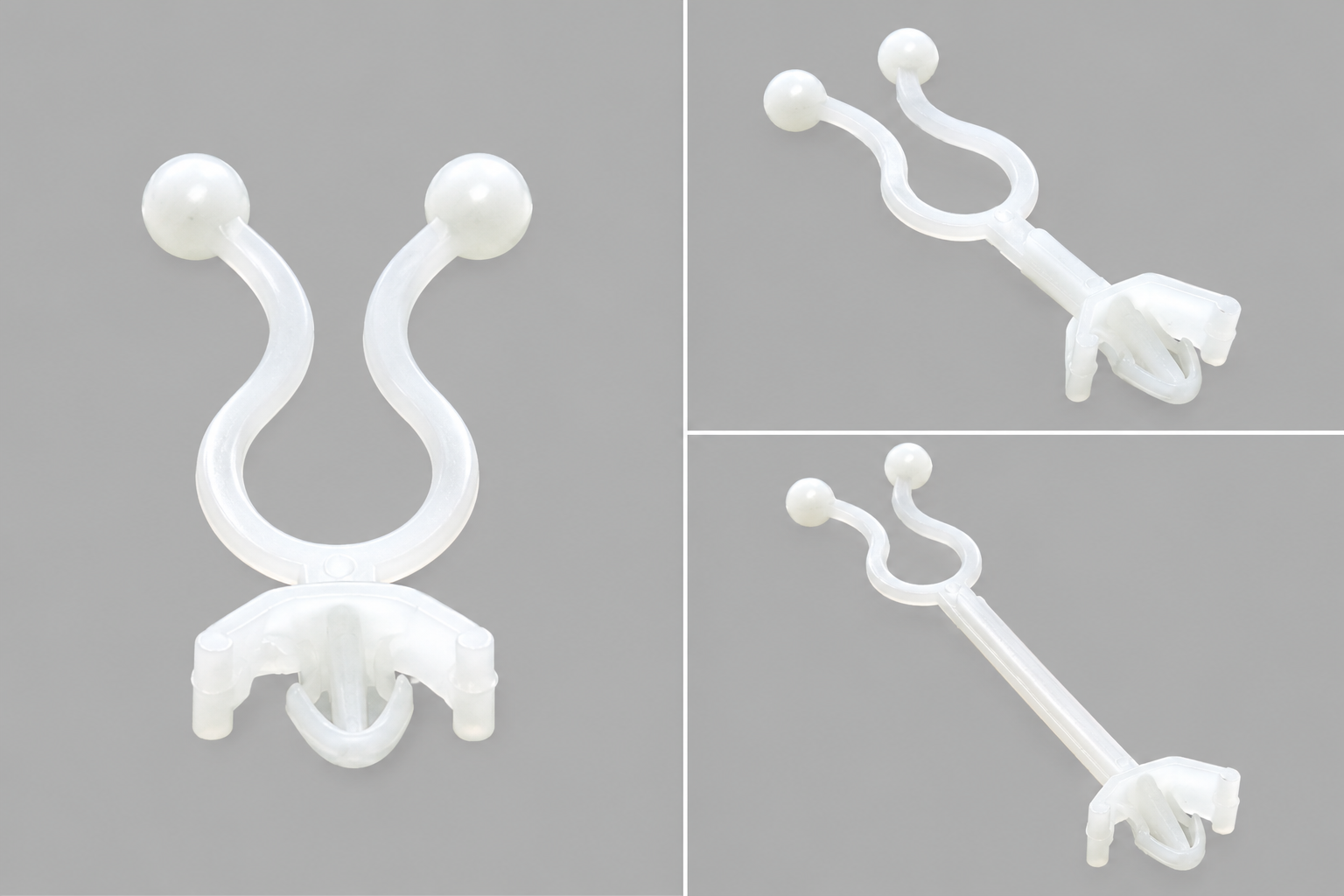

NOVOFLEX | Stand-Off Twist Clips
Elevated wire routing with quick twist locking
Designed for electrical, electronic, PCB, and industrial equipment applications where wires must be elevated from surfaces to reduce heat exposure, electrical interference, and mechanical contact.
Key Features
- Stand-off structure lifts wires away from surfaces
- Fingertip twist mechanism for quick fastening
- Helps reduce heat exposure and transient interference
- Tool-free push-in mounting installation
- Available in multiple standard sizes
Technical Specifications
- Material: High Quality Nylon 6 (Polyamide)
- Operating Temperature: -25°C to +85°C
- Installation Method: Push-In Mounting
- Fastening Type: Twist Lock Mechanism
- Standard Sizes: Six Standard Sizes Available
- Colour: Natural White

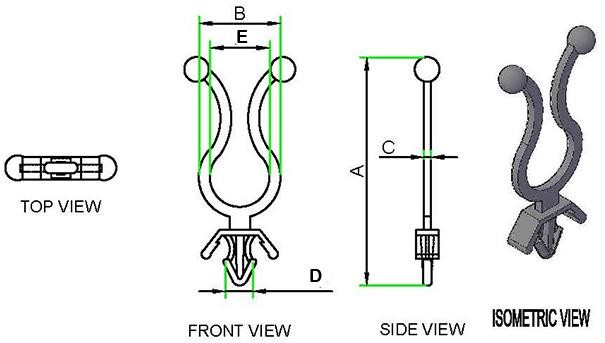

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Thickness (C) - mm | Push Hole Dia (D) - mm | Inner Dia (E) - mm | Plate Thickness (mm) | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|
| SKP 1 | 44 | 15.7 | 1.4 | 4.7 | 11.5 | 0.5 to 2.3 | 100 | ||
| SKP 2 | 57 | 16 | 1.5 | 4.7 | 11.5 | 0.5 to 2.3 | 100 | ||
| SKP 3 | 62 | 9 | 1.1 | 4.7 | 6.4 | 0.5 to 2.3 | 100 | ||
| SKP 6 | 110 | 15.8 | 1.8 | 4.7 | 11.4 | 0.5 to 2.3 | 100 | ||
| SKP 9 | 45 | 19.5 | 1.3 | 4.7 | 16.1 | 0.5 to 2.3 | 100 | ||
| SKP 10 | 64 | 24 | 2 | 6.4 | 19.5 | 0.5 to 2.3 | 100 |
Standard & Custom Colours
Applications
- PCB and electronic assemblies
- Electrical control systems
- Industrial machinery wiring
- Automotive electronics
- Chassis and equipment cable routing
- Heat-sensitive electrical installations
Use When
- Wires require elevation from mounting surfaces
- Heat-sensitive areas need cable separation
- Fast reusable wire fastening is preferred
- Electrical interference reduction is important
Avoid When
- Heavy cable loads exceed clip capacity
- Permanent tamper-resistant fastening is required
- Mounting surfaces lack compatible hole configurations
- Extreme operating conditions exceed specifications
Why Novoflex
Novoflex develops wire management systems engineered for installation efficiency and long-term operational stability. By combining elevated routing, reusable fastening, and durable materials, Novoflex products improve cable protection across demanding electrical environments.NOVOFLEX |
