NOVOFLEX | Adhesive-Backed Cable Guide Clip
When routing small-diameter communication cables, inconsistent fixing leads to sagging, signal disruption risk, and untidy installations—especially where drilling is not practical.
Novoflex Adhesive-Backed Cable Guide Clips are engineered to securely manage cables up to 6.4 mm (1/4") diameter, including RG/U type TV cables and similar communication lines. Designed with a high-performance adhesive backing and Nylon 6 body, these clips enable fast, clean, and tool-free installation on smooth surfaces.
They provide a reliable solution for maintaining organized cable paths and consistent routing geometry in electrical and electronic systems.
Key Features
- • Optimized Cable Fit (Up to 6.4 mm)-Precisely designed for RG/U type TV cables and similar small-diameter wires.
- • Tool-Free Installation-Self-adhesive backing allows quick application without drilling or additional hardware.
- • Reliable Adhesion Strength-Delivers a continuous straight pull load of 1 kg per square inch (25.4 mm) of adhesive under proper conditions.
- • Durable Nylon 6 Construction-Provides structural stability and wear resistance in standard environments.
- • Temperature Range-Operational from -25°C to +85°C.
- • Standard Colour: Natural White
Technical Specifications
- Product Type: Adhesive-Backed Cable Guide Clip
- Material: Nylon 6
- Mounting Method: Pressure-Sensitive Adhesive Backing
- Cable Diameter: Up to 6.4 mm (1/4")
- Suitable Cable Type: RG/U Type TV Cables & Similar Communication Cables
- Adhesive Pull Strength: Approx. 1 kg per 25.4 mm² of adhesive area under recommended conditions
- Operating Temperature: -25°C to +85°C
- Installation: Tool-Free, Peel-and-Stick
- Colour: Natural White
- Recommended Surfaces: Smooth, Clean, Dry Plastic, Metal & Glass Surfaces
- Surface Preparation: 50/50 Isopropanol-Water Cleaning Recommended
- Application Load: Light-Duty Cable Routing
- Primary Function: Cable Guiding, Alignment & Retention

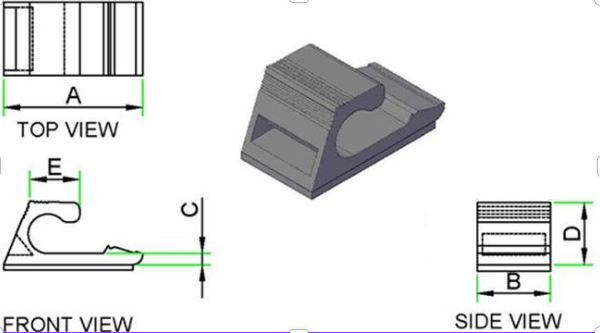

Product Dimensions
| Novoflex Part No. | Base Length (A) - mm | Base Width (B) - mm | Base Thickness (C) - mm | Height (D) - mm | Clamp Length (E) - mm | Max. Cable Dia - mm | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|
| TVCG 1 A | 21.4 | 11.2 | 1.8 | 9.5 | 7.5 | 6.4 | 100 |
Standard & Custom Colours
Applications
- Smooth Surface Mounting (plastic, metal, glass)
- Installation Protocol (Critical for Adhesion)
- Surface Preparation
- Ensure the surface is clean, dry, and free from oil, dust, or contaminants.
- Cleaning Process
- Use a 50/50 isopropanol-water solution and allow complete drying.
- Application
- Remove protective backing carefully without touching adhesive.
- Pressure Setting
- Press firmly for several seconds to ensure proper bonding.
- Positioning Clarity
Use When
- Cable diameter is ≤ 6.4 mm
- Clean routing and aesthetics are required
- Drilling is not feasible
Avoid When
- Heavy cables or high tension loads are involved
- Surfaces are rough, oily, or uneven
Why Novoflex
Cable management at small scale demands precision fit and reliable adhesion, not excess force. Novoflex ensures consistent cable alignment and secure placement in applications where accuracy and cleanliness matter.NOVOFLEX |
