NOVOFLEX | Push Mount Wire Holder
Snap-in wire routing and retention
Designed for precise routing and secure holding of single or bundled wires in PCBs, metal chassis, and compact assemblies across electronics, automotive, and communication systems
Key Features
- Secure, permanent locking within panels or PCBs
- Supports organized routing of single or bundled wires
- Durable Nylon 6 construction
- Clean natural white finish for structured layouts
Technical Specifications
- Material: High-Grade Nylon 6 (Polyamide)
- Mount Type: Push Mount Wire Holder
- Panel Thickness: 0.5 mm to 2.8 mm
- Temperature Range: -25°C to +85°C
- Colour: Natural White

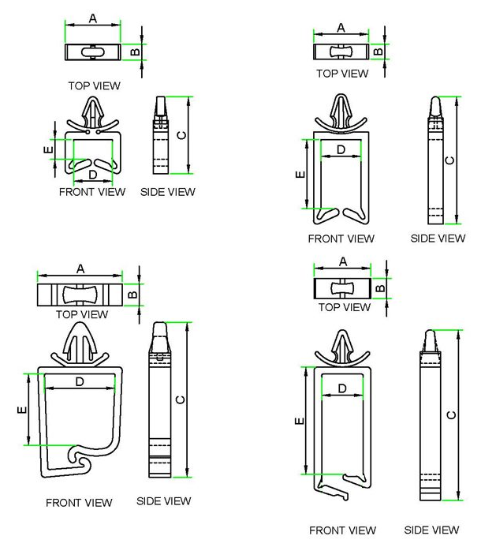

Product Dimensions
| Novoflex Part No. | Length A (mm) | Width B (mm) | Height C (mm) | Bundle Dia Range D (mm) | Bundle Dia Range E (mm) | Hole Dia (mm) | Standard packing | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|
| WH-5 | 15.5 | 4.4 | 21.6 | 10.9 | 5.3 | 4.7 | 100 | ||
| WH-10 | 15.8 | 4.6 | 27.4 | 11.9 | 11 | 4.5 | 100 | ||
| WH-19 | 15.5 | 4.2 | 35.8 | 11.1 | 19.3 | 4 | 100 | ||
| WH-27 | 15.9 | 5.7 | 47.9 | 11.2 | 26.9 | 3.7 | 100 | ||
| WHH-13 | 28.7 | 4.7 | 31.5 | 23.6 | 13.6 | 5.9 | 100 | ||
| WHS-20 | 23.8 | 6.2 | 43.4 | 20.4 | 26.9 | 8 | 100 |
Standard & Custom Colours
Applications
- PCB wire routing
- Electronic enclosures
- Automotive wiring systems
- Communication equipment assemblies
Use When
- Clean and structured wire routing is required
- PCB or chassis mounting holes are available
- Tool-less installation is preferred
- Long-term stable wire positioning is needed
Avoid When
- Heavy cable loads require high-strength anchoring
- Hole size or panel thickness is incompatible
- Frequent removal or repositioning is required
- Extreme environments exceed material limits
