NOVOFLEX | Adhesive-Backed Flat Cable Clip
Flat cables often require low-profile, non-intrusive routing, especially in indoor environments where drilling is not practical and aesthetics matter.
Novoflex Adhesive-Backed Flat Cable Clips are designed to secure flat cables of any width up to 4 mm height, ensuring clean alignment with minimal installation effort. Built with high-grade Nylon 6 and a pressure-sensitive adhesive foam backing, they provide reliable holding for light-duty indoor cable management.
This makes them ideal for applications where precision, simplicity, and surface safety are essential.
Key Features
- Low-Profile Cable Support-Accommodates flat cables of any width up to 4 mm height without deformation.
- Tool-Free Installation-Pressure-sensitive adhesive backing enables quick, drill-free mounting.
- Reliable Adhesion Performance-Provides ~1 kg per sq. inch (25.4 mm) pull strength under proper conditions.
- Durable Nylon 6 Construction-Ensures structural stability for long-term indoor use.
- Optimized for Indoor Applications-Designed specifically for controlled environments.
- Standard Colour: Natural White
- Operating temp. -25°C to +85°C
Technical Specifications
- Product Type: Adhesive-Backed Flat Cable Clip
- Material: Nylon 6
- Backing Type: Pressure-Sensitive Adhesive Foam
- Cable Type: Flat Cables / Ribbon Cables
- Maximum Cable Height: 4 mm
- Cable Width: Any width, subject to 4 mm maximum height
- Adhesive Pull Strength: Approx. 1 kg per 25.4 mm² of adhesive area under recommended conditions
- Operating Temperature: -25°C to +85°C
- Installation: Tool-Free, Peel-and-Stick
- Colour: Natural White
- Recommended Environment: Indoor / Controlled Environments
- Recommended Surfaces: Smooth, Clean, Dry Surfaces
- Surface Preparation: 50/50 Isopropanol-Water Cleaning Recommended
- Application Load: Light-Duty Cable Management
- Primary Function: Flat Cable Routing, Alignment & Retention

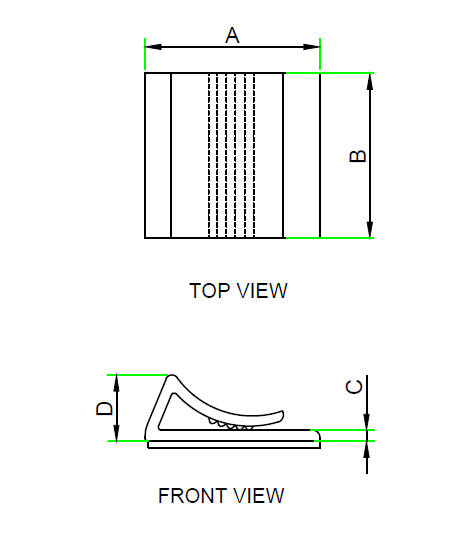

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Thickness (C) - mm | Height (D) - mm | Mounting Method | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| FRCC - A | 27.2 | 25.6 | 1.7 | 10.3 | Adhesive | 100 |
Standard & Custom Colours
Applications
- Indoor Electrical & Electronic Wiring
- Office & Residential Cable Routing
- Flat Ribbon Cable Management
- Surface-Sensitive Installations (no drilling allowed)
Use When
- Cable height is ≤ 4 mm
- Indoor, controlled environment
- Clean, low-profile routing is required
Avoid When
- Outdoor or high-temperature environments
- Heavy load or high-tension cables
- Rough or contaminated surfaces
Why Novoflex
Flat cable routing demands precision without intrusion. Novoflex ensures clean, secure, and surface-safe cable management with minimal installation effort.NOVOFLEX |
