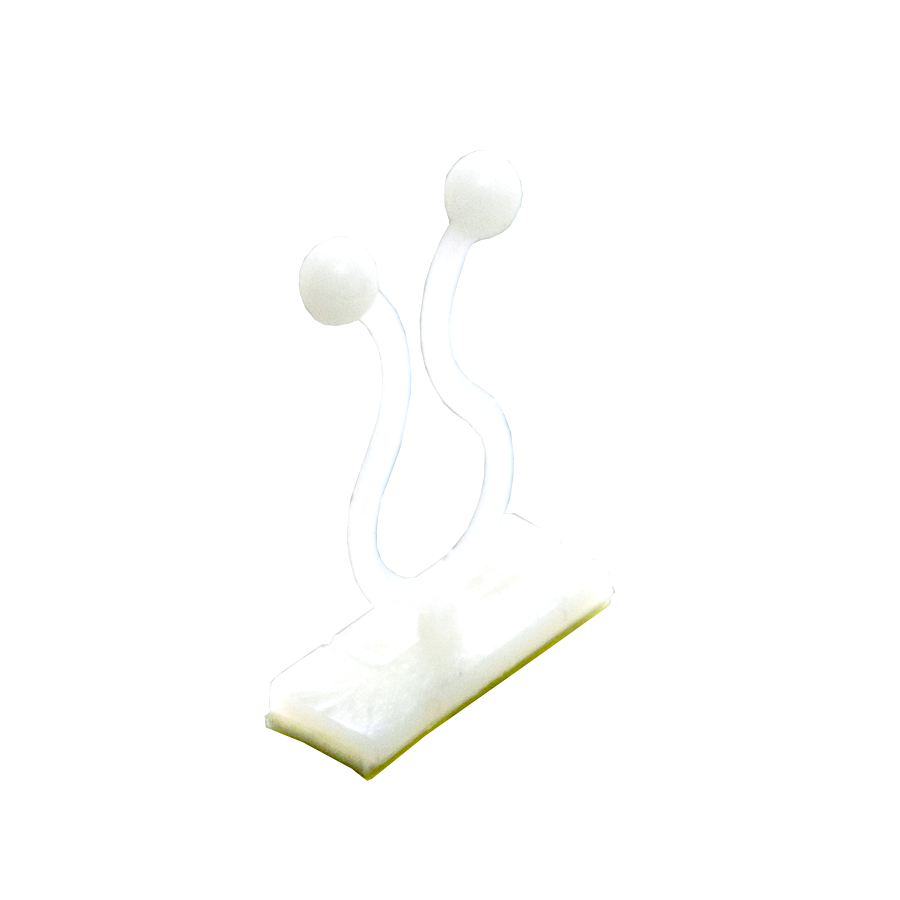

NOVOFLEX | Self-Adhesive Twist Clip
Tool-free adhesive wire routing solution
Designed for fast and organized wire routing in electrical, electronic, automotive, and appliance systems where drilling must be avoided and wires require controlled positioning away from heat or moving components.
Key Features
- Strong self-adhesive mounting system
- Tool-free installation without drilling
- Twist-lock wire fastening for quick adjustments
- Helps separate wires from heat and moving parts
- Durable Nylon construction for industrial reliability
Technical Specifications
- Material: High Quality Nylon 6 (Polyamide)
- Mounting Method: Double Adhesive Tape
- Adhesive Thickness: 0.8 mm
- Operating Temperature: -25°C to +85°C
- Installation Type: Tool-Free Self-Adhesive
- Colour: Natural White

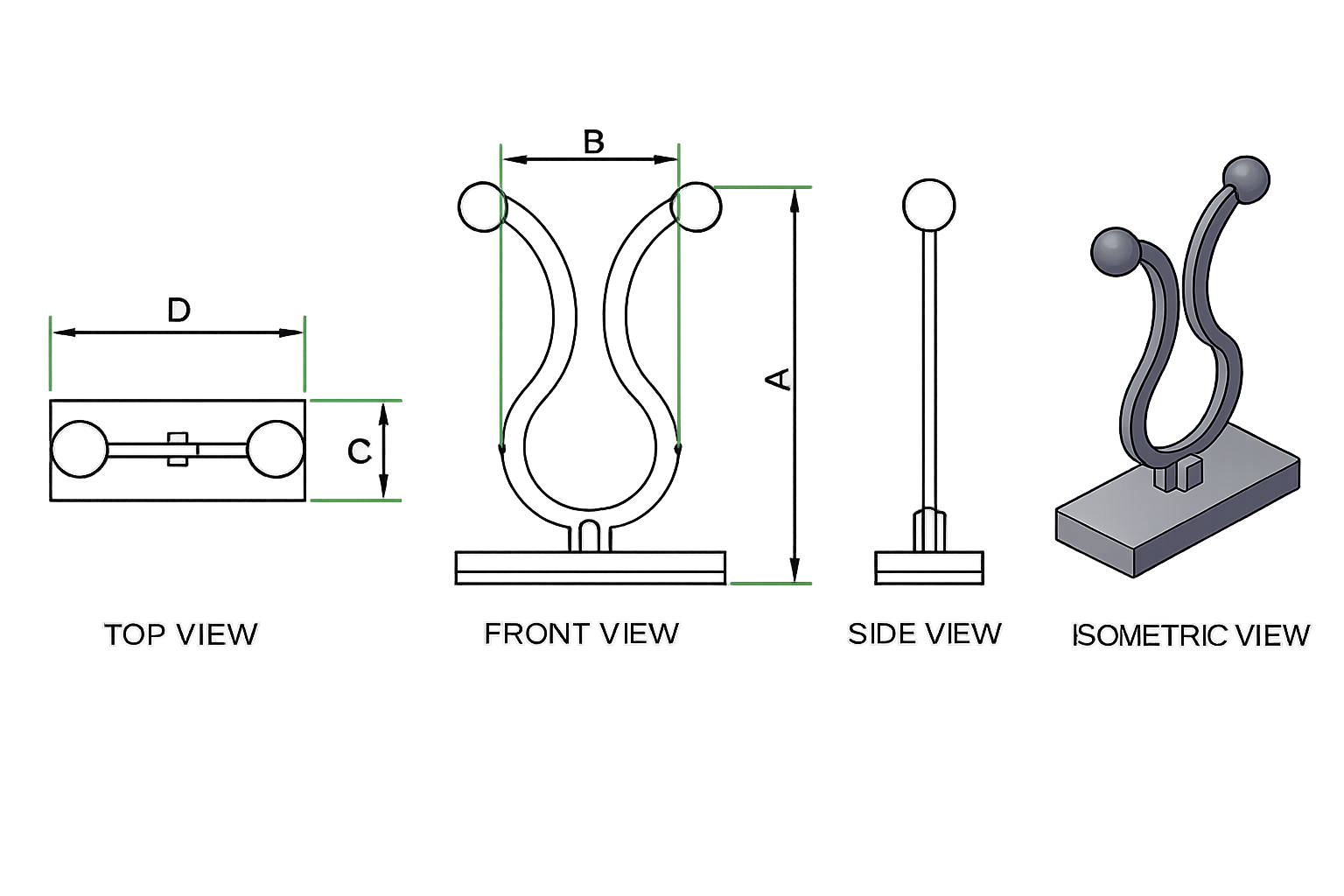

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | PAD Length (C) - mm | PAD Width (D) - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| SKA 5 | 36.5 | 15.7 | 9.6 | 23.8 | 100 |
Standard & Custom Colours
Applications
- Electrical and electronic assemblies
- Appliance and white goods manufacturing
- Automotive wire routing
- Control panels and compact enclosures
- Interior cable organization systems
Use When
- Drilling or screw mounting must be avoided
- Quick cable routing is required
- Wires need separation from heat or movement
- Easy wire repositioning is important
Avoid When
- Heavy cable loads exceed adhesive capability
- Outdoor exposure demands mechanical fastening
- High contamination surfaces reduce adhesive performance
- Extreme operating temperatures exceed specifications
Why Novoflex
Novoflex develops wire management systems focused on installation efficiency and long-term operational stability. By combining fast mounting methods with practical cable control mechanisms, Novoflex products simplify modern electrical assembly processesNOVOFLEX |
