NOVOFLEX | Disc Anchor Clip
Arrowhead Lock Clip with Integrated Disc for Corrugated Tube Mounting
Engineered for Secure Harness Retention in Dynamic Environments
Automotive and electrical harness systems operate under continuous vibration, thermal cycling, and space constraints. In such conditions, corrugated tubes can shift, loosen, or disengage, leading to misalignment, abrasion, and premature failure.
The NOVOFLEX Disc Anchor Clip is designed to provide secure tube retention with fast, push-fit panel mounting, ensuring stability and durability in demanding applications.
Key Features
- Arrowhead Push-Fit Lock-Fast, tool-free installation with strong panel retention
- Internal Tube Grip Design-Prevents movement of corrugated tubes, ensuring alignment stability
- Integrated Disc Base-Enhances surface contact and load distribution
- Vibration-Resistant Performance-Maintains integrity in dynamic automotive and industrial environments
- Multi-Diameter Compatibility-Accommodates a range of nominal corrugated tube sizes
Technical Specifications
- Material: UL-Listed Nylon 6.6
- Flammability: UL94 V-2
- Operating Temperature: -25°C to +85°C
- Compliance: Halogen-Free
- Standard Colour: UV-Resistant Black

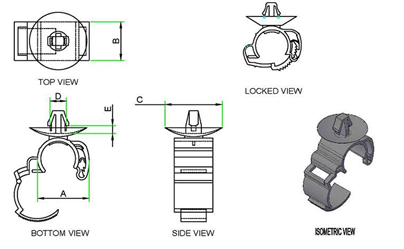

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Dome Seal Dia (C) - mm | Push Hole Dia (D) - mm | Chassis Thickness (E) - mm | Suitable For Cable / Pipe Dia- mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|
| ADC 1315 | 21 | 15 | 22 | 6.5 - 7.0 | 1.0 -2.5 | 13.0 -15.0 | 100 |
Standard & Custom Colours
Applications
- Automotive wiring harness systems
- Electrical and control panel assemblies
- Corrugated conduit routing in machinery
- White goods internal cable protection systems
- Industrial equipment with dynamic cable movement
Use When
- Corrugated tubes need secure panel-mounted retention
- Fast installation with consistent grip strength is required
- Applications involve vibration or movement
Avoid When
- Reusable or frequently detachable clips are required
- Non-standard tube geometries fall outside nominal compatibility
Why Novoflex
Engineered Retention. Fast Installation. Reliable Performance. Novoflex solutions are designed to deliver consistent mechanical performance in real operating conditions, combining material quality with precision geometry to ensure long-term reliability across high-volume industrial applications.NOVOFLEX |
