NOVOFLEX | Fir Tree Push Clamp
High-retention push-fit clamp for cables and pipes
Designed for automotive, heavy equipment, and wire harness applications where cables or pipes must be securely fastened onto varying panel thicknesses under vibration and mechanical stress.
Key Features
- Extended fir tree design for multiple panel thicknesses
- High extraction resistance with low insertion force
- Secure retention against vertical and lateral loads
- Tool-free push-fit installation
- Halogen-free UV-resistant Nylon construction
Technical Specifications
- Material: UL-Listed UV-Resistant Nylon 6.6
- Mounting Hole Diameter: 6.8 mm
- Compatible Panel Thickness: 0.7 mm – 12 mm
- Operating Temperature: -25°C to +85°C
- Mounting Type: Fir Tree Push Clamp
- Attributes: Halogen-Free
- Standard Colour: UV-Resistant Black

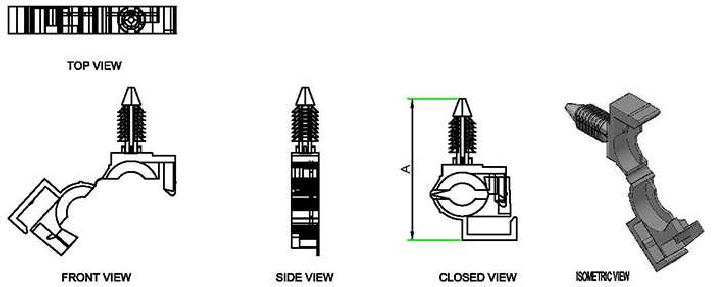

Product Dimensions
| Novoflex Part No. | Length (A)- mm | Panel Thickness - mm | Push Hole Dia - mm | Max Cable / Pipe Dia - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| FTC 01 | 41 | 0.7 - 12 | 8.6 | 8 | 100 |
Standard & Custom Colours
Applications
- Automotive wire harnesses
- Trucking and heavy equipment manufacturing
- Industrial cable routing
- Pipe fastening systems
- Electrical panel installations
- Vibration-prone fastening environments
Use When
- Multiple panel thicknesses must be accommodated
- Tool-free installation improves assembly efficiency
- High extraction resistance is required
- Cable or pipe movement must be minimized
Avoid When
- Reusable fastening systems are required
- Extremely heavy structural support is necessary
- Mounting holes differ from required specifications
- Operating conditions exceed temperature ratings
