NOVOFLEX | Push-Mount Cable Harness Clip

Tool-free secure cable harness retention

Designed for fast and reliable cable harness routing in industrial, automotive, telecom, renewable energy, and high-vibration environments where secure retention and installation efficiency are critical.

Request a Quote

Key Features

Tool-free push-mount installation
Stability wings for vibration-resistant retention
Secure cable locking for noise-free routing
Resistant to UV, corrosion, fungus, and mild acids
UL94 V-2 compliant for fire safety

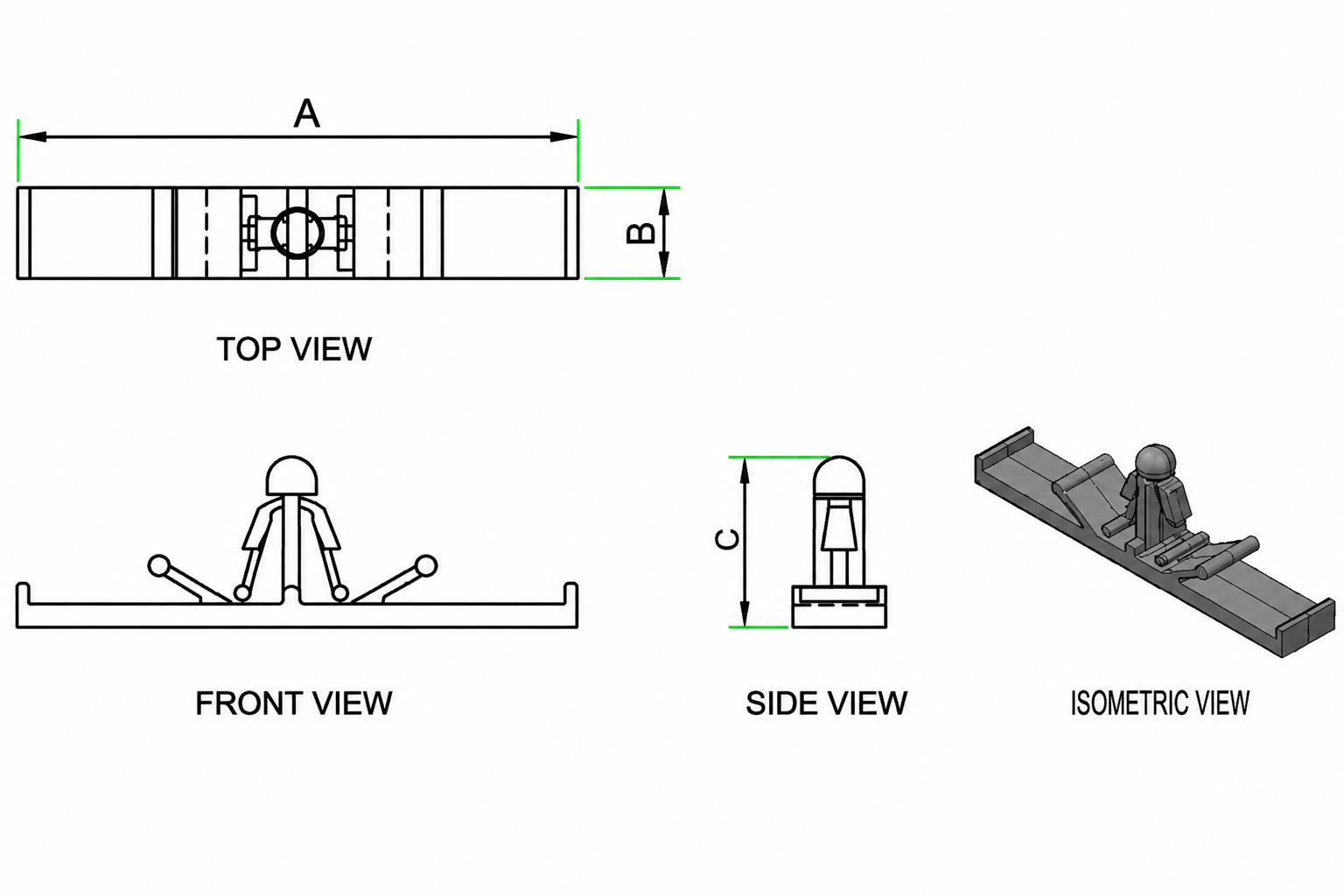

Push-Mount Cable Harness Clip technical drawing

Technical Specifications

Material: Nylon 6 (Polyamide)
Mount Type: Push Mount Cable Harness Clip
Temperature Range: -25°C to +85°C
Flammability Rating: UL94 V-2
Resistance: UV, Fungus, Corrosion, Mild Acids
Colour: UV-Resistant Black

Product Dimensions

Novoflex Part No.	Length (A) - mm	Width (B) - mm	Height (C) - mm	Push Hole Dia - mm	Chassis Thickness - mm	Standard Packaging Nos.	Quantity	Select
HC 1 P	55	9	17.2	6.4	0.5 - 1.6	100

Standard & Custom Colours

Applications

Automotive wiring harness routing
Electrical control panels
Telecom towers and network systems
Solar and wind energy installations
Marine and offshore cable management
Aviation and railway wiring systems
Outdoor lighting and appliance wiring
Power distribution infrastructure

Use When

Fast, tool-free installation is required
High vibration resistance is critical
Stable and noise-free cable routing is needed
Outdoor or industrial environmental durability is necessary

Avoid When

Heavy structural load support is required
Reusable or adjustable fastening is needed
Mounting hole dimensions are incompatible
Extreme operating conditions exceed material limits
