NOVOFLEX | Panel Edge Clip – 4 Way
Multi-directional edge-mounted cable fastening
Designed for rapid and secure cable routing along panel edges in automotive, industrial, and equipment assemblies where drilling must be avoided and vibration-resistant cable positioning is essential.
Key Features
- Edge-mounted installation without drilling
- Four-way cable routing flexibility
- Adjustable cable tie positioning minimizes chafing
- Zinc Geomet 720 coated metal clip for corrosion resistance
- UV-resistant and halogen-free construction
Technical Specifications
- Material: UL-Listed UV Resistant Nylon 6.6
- Clip Type: Panel Edge Clip – 4 Way
- Panel Thickness Range: 1.0 mm to 6.0 mm
- Pre-Assembled Tie Length: 200 mm
- Optional Tie Lengths: 250 mm, 300 mm, 368 mm, 450 mm
- Temperature Range: -25°C to +85°C
- Flammability Rating: UL94V-2
- Metal Clip Coating: Zinc Geomet 720
- Environmental Feature: Halogen-Free
- Colour: UV-Resistant Black

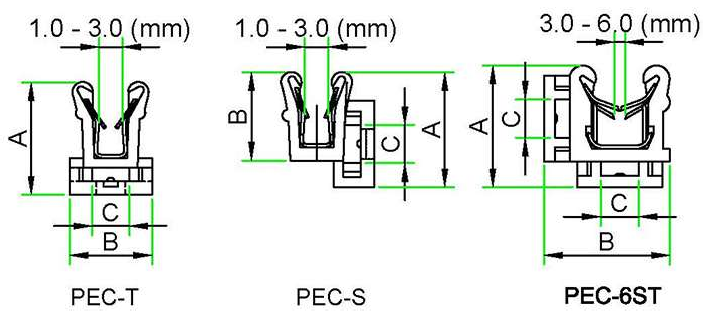

Product Dimensions
| Novoflex Part No. | Length (A) | Width (B) | Max Cable Tie Width (C) | Panel Thickness | Insertion Method | Quantity | Select |
|---|---|---|---|---|---|---|---|
| PEC T | 13.7 | 11.3 | 5 | 1.0 - 3.0 | TOP | ||
| PEC S | 14 | 12 | 5 | 1.0 - 3.0 | SIDE | ||
| PEC 6 ST | 14.5 | 17.1 | 5 | 3.0 - 6.0 | SIDE & TOP | ||
| PEC 46 ST | 16 | 17.4 | 5 | 4.0 - 6.0 | SIDE & TOP |
Product Dimensions — Table 2
| Novoflex Part No. | PEC Type | Length of Cable Tie (mm) | Width of Cable Tie (mm) | Thickness (mm) | Max. Bundle Dia (mm) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| CP200PEC T 01 | PEC T | 200 | 4.7 | 1.2 | 50 | ||
| CP200PEC T 02 | 200 | 4.7 | 1.2 | 50 | |||
| CP200PEC S 01 | PEC S | 200 | 4.7 | 1.2 | 50 | ||
| CP200PEC S 02 | 200 | 4.7 | 1.2 | 50 | |||
| CP200PEC 6ST 01 | PEC 6 ST | 200 | 4.7 | 1.2 | 50 | ||
| CP200PEC 6ST 02 | 200 | 4.7 | 1.2 | 50 | |||
| CP200PEC 6ST 03 | 200 | 4.7 | 1.2 | 50 | |||
| CP200PEC 6ST 04 | 200 | 4.7 | 1.2 | 50 | |||
| CP200PEC 46ST | PEC 46 ST | 200 | 4.7 | 1.2 | 50 |
Standard & Custom Colours
Applications
- Automotive harness routing
- Industrial equipment cable management
- Electrical panel assemblies
- Appliance and machinery installations
- High-vibration cable routing systems
Use When
- Panel-edge mounting is preferred over drilling
- Multi-directional cable routing is required
- Cable abrasion and chafing must be minimized
- Corrosion-resistant fastening is critical
Avoid When
- Panel thickness falls outside specified range
- Structural load-bearing support is required
- Reusable fastening functionality is necessary
- Extreme operating temperatures exceed specifications
Why Novoflex
Novoflex develops fastening systems engineered for efficient installation and long-term structural reliability. By combining flexible routing, vibration resistance, and corrosion protection, Novoflex products improve cable management performance across demanding industrial environments.NOVOFLEX |
