NOVOFLEX | Dome Fir Tree Mount Clip + Cable Tie
Two-Piece Push-Fit Mount with Dome Base for Secure, Sealed Cable Bundling
Engineered for Fast Installation with High Retention Strength
In automotive and industrial assemblies, cable mounting solutions must balance ease of installation with long-term retention under vibration and environmental exposure. Conventional systems often compromise—either requiring high insertion force or failing to maintain grip over time.
The NOVOFLEX Dome Fir Tree Mount Clip + Cable Tie is a pre-assembled two-piece solution designed to deliver low insertion force with high extraction resistance, ensuring secure, rattle-free cable mounting in demanding environments.
Key Features
- Low Insertion Force Design-Enables faster and easier installation
- High Extraction Resistance-Ensures secure hold even under vibration
- Dome-Shaped Sealing Base-Protects against ingress of dust, water, and chemicals
- Pre-Assembled Two-Piece System-Combines mounting and bundling for efficient workflow
- Rattle-Free Performance-Maintains stable cable positioning in dynamic environments
Technical Specifications
- Material: UL-Listed UV-Resistant Nylon 6.6
- Optional Variant: Heat-Stabilized Nylon (up to 115°C continuous use)
- Flammability: UL94 V-2
- Operating Temperature: -25°C to +85°C
- Attributes: Halogen-Free
- Standard Colour: UV-Resistant Black

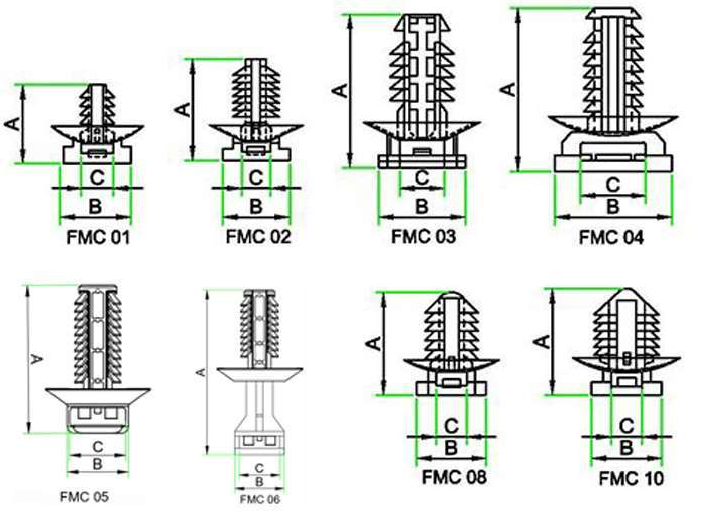

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Base Width (B) - mm | Max Cable Tie Width (C) - mm | Push Mount Hole Dia - mm | Plate Thickness - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| FMC 01 | 13.7 | 11.6 | 5.1 | 5 | 0.7 - 1.8 | 100 | ||
| FMC 02 | 17.4 | 11.4 | 5.2 | 6.5 -7.0 | 0.8 - 7.0 | 100 | ||
| FMC 03 | 26.7 | 15.2 | 8 | 9.5 - 10 | 4.0 -11.0 | 100 | ||
| FMC 04 | 28.5 | 20.2 | 13 | 9.5 | 3.0 - 12.0 | 100 | ||
| FMC 05 | 34 | 14 | 10 | 9.0 - 10.0 | 2.0 - 18.0 | 100 | ||
| FMC 06 | 45.4 | 13.8 | 10 | 9.0 - 10.0 | 2.0 - 14.0 | 100 | ||
| FMC 08 | 17.7 | 12.0 | 5.0 | 8.0 | 1.0 – 6.0 | 100 | ||
| FMC 10 | 18.4 | 12.1 | 5.1 | 9.5 – 10.0 | 1.0 – 4.0 | 100 |
Dome Fir Tree Mount Clip with Cable Tie Combination
| Novoflex Part No. | Length of Cable Tie (mm) | Width of Cable Tie (mm) | Thickness of Cable Ties (mm) | Max. Bundle Dia (mm) | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| CPS100FMC 01 | 100 | 2.5 | 1 | 24 | 100 | ||
| CPS150FMC 01 | 150 | 3.6 | 1.2 | 36 | 100 | ||
| CP200FMC 01 | 200 | 4.7 | 1.2 | 50 | 100 | ||
| CP250FMC 01 | 250 | 4.7 | 1.3 | 64 | 100 | ||
| CPS150FMC 02 | 150 | 3.6 | 1.2 | 36 | 100 | ||
| CP200FMC 02 | 200 | 4.7 | 1.2 | 50 | 100 | ||
| CP250FMC 02 | 250 | 4.7 | 1.3 | 64 | 100 | ||
| CPS300FMC 02 | 300 | 4.7 | 1.3 | 82 | 100 | ||
| CPS368FMC 02 | 368 | 4.7 | 1.3 | 103 | 100 | ||
| CP300FMC 03 | 300 | 7.6 | 1.6 | 76 | 100 | ||
| CP380FMC 03 | 380 | 7.6 | 1.5 | 108 | 100 | ||
| CP450FMC 03 | 450 | 7.6 | 1.6 | 125 | 100 | ||
| CP300FMC 04 | 300 | 7.6 | 1.6 | 76 | 100 | ||
| CP380FMC 04 | 380 | 7.6 | 1.5 | 108 | 100 | ||
| CP200FMC 05 | 200 | 4.7 | 1.2 | 50 | 100 | ||
| CP200HDFMC 05 | 200 | 7.5 | 1.5 | 49 | 100 | ||
| CP300FMC 05 | 300 | 7.6 | 1.6 | 76 | 100 | ||
| CP380FMC 05 | 380 | 7.6 | 1.5 | 108 | 100 | ||
| CP450FMC 05 | 450 | 7.5 | 1.6 | 125 | 100 | ||
| CP550FMC 05 | 550 | 9 | 1.8 | 156 | 100 | ||
| CP200FMC 06 S | 200 | 4.7 | 1.2 | 50 | 100 | ||
| CP200HDFMC 06 S | 200 | 7.5 | 1.5 | 49 | 100 | ||
| CP300FMC 06 S | 300 | 7.6 | 1.6 | 76 | 100 | ||
| CP380FMC 06 S | 380 | 7.6 | 1.5 | 108 | 100 | ||
| CP450FMC 06 S | 450 | 7.5 | 1.6 | 125 | 100 | ||
| CP550FMC 06 S | 550 | 9 | 1.8 | 156 | 100 | ||
| CP200FMC 08 | 200 | 4.7 | 1.2 | 50 | 100 | ||
| CP200 FMC 10 | 200 | 4.7 | 1.2 | 50 | 100 |
Standard & Custom Colours
Applications
- Automotive wiring harness systems
- Electrical panels and enclosures
- Industrial machinery cable routing
- White goods internal wiring
- General-purpose cable management in harsh environments
Use When
- Fast installation with low insertion effort is required
- Strong retention under vibration and movement is critical
- Exposure to dust, water, or chemicals is present
Avoid When
- Reusable or frequently removable fastening is required
- Panel conditions fall outside standard mounting compatibility
Why Novoflex
Effortless Installation. Strong Retention. Reliable Performance. Novoflex fastening solutions are engineered to perform in real industrial conditions—balancing installation efficiency with long-term durability to deliver consistent results across high-volume applications.NOVOFLEX |
