NOVOFLEX | Screw Cable Tie Plug
Deep-anchor cable tie mounting stability
Designed for securing cable bundles in high-stress environments such as automotive chassis, industrial panels, and electrical systems where strong anchoring and long-term stability are critical.
Key Features
- Deep anchor design for superior pull-out resistance
- Screw-based mounting ensures rigid and permanent fixation
- Compatible with standard cable ties for secure bundling
- High durability Nylon 6.6 construction
- UV-resistant black for outdoor and exposed environments
Technical Specifications
- Material: UL-Listed Nylon 6.6 (Polyamide)
- Mount Type: Screw Mount with Deep Anchor
- Temperature Range: -25°C to +85°C
- Colour: UV-Resistant Black
- Compatibility: Suitable for Cable Tie Integration

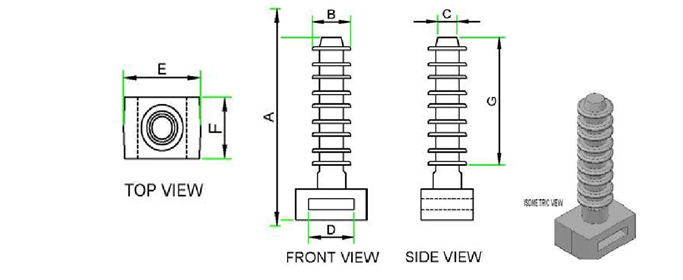

Product Dimensions
| Novoflex Part No. | Length (A) mm | Lock Head Dia (B) mm | Anchor Head Dia ( C) mm | Max Cable Tie Width (D) mm | Base Width (E) mm | Base Length (F) mm | Serration Length (G) mm | Push Hole Dia (mm) | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CPT 01 | 38.8 | 8.2 | 4 | 9.5 | 15.1 | 11 | 25.2 | 7.5 | 100 |
Standard & Custom Colours
Applications
- Automotive wiring harness mounting
- Industrial machinery cable management
- Electrical panels and enclosures
- Heavy-duty cable routing systems
Use When
- Strong, permanent cable anchoring is required
- Systems are exposed to vibration or mechanical stress
- Screw-based mounting is feasible
- Long-term durability is critical
Avoid When
- Tool-less or quick-release installation is required
- Panel access for screw installation is restricted
- Frequent repositioning or removal is needed
- Lightweight, temporary routing is sufficient
Why Novoflex
Novoflex develops fastening solutions that prioritize structural integrity and long-term reliability. By combining deep anchoring with robust material engineering, Novoflex ensures cable management systems remain stable even in demanding operational environments.NOVOFLEX |
