NOVOFLEX | Swivel Tie Clamp
Flexible Multi-Angle Cable Fastening
Dynamic cable routing and multi-angle harness fastening in automotive, industrial, telecom, and electrical systems where vibration, movement, and limited installation space demand flexible cable positioning. Designed for wire harness management in control panels, machinery, heavy equipment, OEM assemblies, and compact electrical installations requiring adaptable routing without compromising retention stability.
In moving electrical systems, rigid cable routing creates stress concentration at fixed points, leading to insulation fatigue, harness strain, and maintenance complications. Conventional static clamps restrict installation flexibility and fail to adapt to changing cable paths. Novoflex Swivel Tie Clamp is engineered to provide controlled cable movement, multi-directional routing capability, and stable harness retention in demanding operational environments.
Key Features
- Swivel head for flexible cable orientation.
- Integrated cable tie fastening system.
- Vibration-resistant cable retention.
- Tool-free installation design.
- Durable and corrosion-resistant polyamide construction.
- Supports multi-angle cable routing.
- Non-conductive for electrical safety.
- Suitable for compact and dynamic installations.
Technical Specifications
- Product Type: Swivel Tie Clamp
- Function: Cable Routing & Fastening
- Design Feature: Rotating Swivel Head
- Installation Method: Push / Snap Mount
- Material: Nylon (Polyamide)/PA66
- Electrical Property: Non-Conductive
- Operating Application: Automotive & Industrial Harnessing
- Standard Colour: Black
- Operating Temperature: -25°C to +85°C
- Swivel Functionality: +10° to +170°

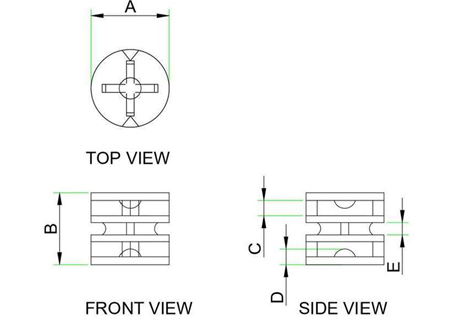

Product Dimensions
| Novoflex Part No. | Dia (A) - mm | Height (B) - mm | Slot Height (C) - mm | Height (D) - mm | Height (E) - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| STC-01 | 15.9 | 15 | 3.1 | 3.4 | 2.5 | 100 |
Standard & Custom Colours
Applications
- Automotive wire harness routing
- Industrial cable management
- Telecom equipment wiring
- Electrical control panels
- Heavy equipment harness systems
- Appliance internal wiring
- Machinery cable organization
- OEM electrical assemblies
- Dynamic routing installations
Use When
- Cable routing flexibility is required.
- Harnesses experience movement or vibration.
- Multi-angle cable positioning is necessary.
- Compact installation spaces limit routing options.
- Fast integrated cable fastening is preferred.
Avoid When
- Heavy mechanical load-bearing is required.
- Permanent rigid cable positioning is necessary.
- Extreme temperatures exceed material limitations.
- Metal fastening systems are mandatory.
Why Novoflex
NOVOFLEX develops industrial cable management and fastening solutions engineered for installation efficiency, adaptability, and long-term operational stability. Designed for demanding environments, Novoflex products help maintain organized, vibration-resistant, and serviceable electrical systems.NOVOFLEX |
