NOVOFLEX | Mounting Buttons
Thumb-press panel fastening solution
Designed for quick and secure attachment of lightweight panels, identification plates, and insulation materials in industrial, automotive, and utility environments where ease of installation and corrosion resistance are critical.
Key Features
- Tool-free installation using thumb pressure
- Resistant to corrosion and chemical exposure
- Suitable for lightweight panel fastening
- Durable Nylon 6 construction
- Available in UV-resistant black and natural white
Technical Specifications
- Material: High-Grade Nylon 6 (Polyamide)
- Mount Type: Push Mount Button
- Installation Method: Thumb Pressure
- Temperature Range: -25°C to +85°C
- Colour Options: UV-Resistant Black, Natural White

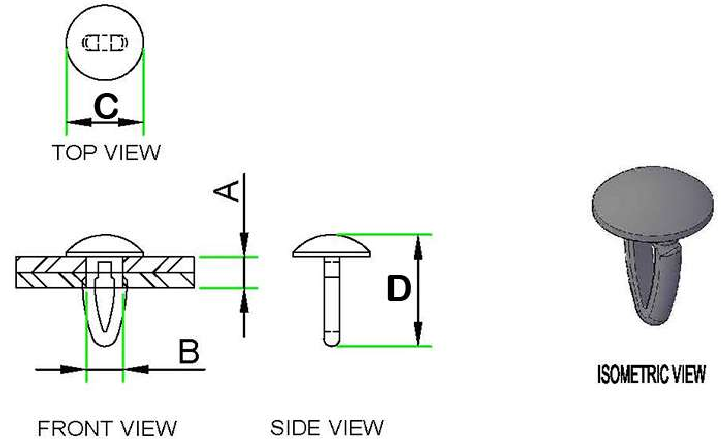

Product Dimensions
| Novoflex Part No. | Material Thickness (A) - mm | Push Hole Dia (B) - mm | Head Dia (C) - mm | Length (D) - mm | Standard Packing (Nos.) | Quantity | Select |
|---|---|---|---|---|---|---|---|
| MB 01 | 2.5 - 3.5 | 3.7 | 7.7 | 11.5 | 1000 |
Standard & Custom Colours
Applications
- Identification plate fixing
- Insulation material attachment
- Access panel fastening
- General industrial and automotive uses
Use When
- Quick, tool-less installation is required
- Lightweight panels or components need fastening
- Corrosion resistance is important
- Clean and simple assembly is preferred
Avoid When
- High load-bearing or structural fastening is required
- Frequent removal or reusability is needed
- Panel thickness or hole compatibility is uncertain
- Extreme conditions exceed material limits
