NOVOFLEX | Polyester-Coated Stainless Steel Cable Ties

Extreme-environment corrosion-resistant cable fastening

Designed for harsh industrial, marine, offshore, and high-temperature environments where cable fastening systems must withstand corrosion, chemicals, fire exposure, vibration, and extreme temperatures without compromising safety or cable integrity.

Request a Quote
Polyester-Coated Stainless Steel Cable Ties

Key Features

  • Marine-grade SS316 stainless steel construction
  • Halogen-free polyester coating for reduced smoke and toxicity
  • Ball bearing locking system for permanent fastening
  • Excellent resistance to corrosion, chemicals, UV, and salt spray
  • Rolled edges protect cables and installers from damage

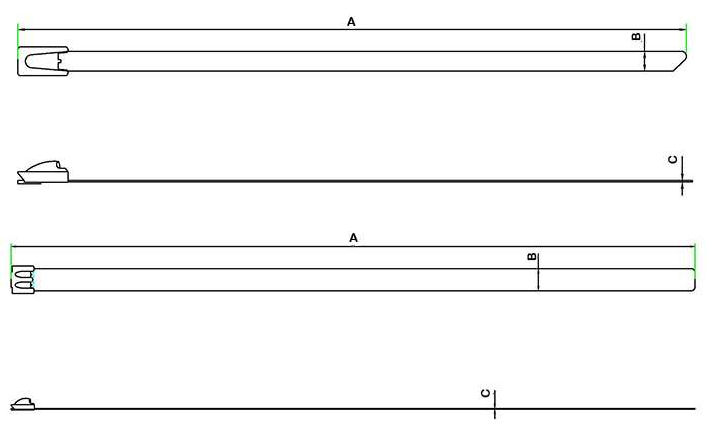

Polyester-Coated Stainless Steel Cable Ties technical drawing

Technical Specifications

  • Material: SS316 Stainless Steel with Polyester Coating
  • Locking Mechanism: Stainless Steel Ball Bearing Lock
  • Tensile Strength: 55 kg to 210 kg (Depending on Size)
  • Coating Temperature Range: -50°C to +150°C
  • Tie Temperature Range: -80°C to +538°C
  • Environmental Resistance: Corrosion, Salt Spray, Weather, UV
  • Chemical Resistance: Resistant to Various Industrial Chemicals
  • Coating Type: Low-Smoke, Halogen-Free Polyester
  • Additional Property: Anti-Magnetic

Product Dimensions

Novoflex Part No. Length A (mm) Width B (mm) Thickness C (mm) Max Dia (mm) Tensile Strength (Kg) Standard Packing (Nos.) Quantity Select
SS-46-100 C 100 4.6 0.38 26 55 100
SS-46-150 C 150 4.6 0.38 35 55 100
SS-46-200 C 200 4.6 0.38 51 55 100
SS-46-250 C 250 4.6 0.38 62 55 100
SS-46-300 C 300 4.6 0.38 75 55 100
SS-46-360 C 360 4.6 0.38 102 55 100
SS-46-450 C 450 4.6 0.38 112 55 100
SS-46-520 C 520 4.6 0.38 152 55 100
SS-79-100 C 100 7.9 0.38 26 105 100
SS-79-150 C 150 7.9 0.38 35 105 100
SS-79-200 C 200 7.9 0.38 51 105 100
SS-79-250 C 250 7.9 0.38 62 105 100
SS-79-300 C 300 7.9 0.38 75 105 100
SS-79-360 C 360 7.9 0.38 102 105 100
SS-79-450 C 450 7.9 0.38 112 105 100
SS-79-520 C 520 7.9 0.38 152 105 100
SS-79-680 C 680 7.9 0.38 203 105 100
SS-120-360 C 360 12 0.38 102 210 100
SS-120-520 C 520 12 0.38 152 210 100
SS-120-680 C 680 12 0.38 203 210 100
SS-120-840 C 840 12 0.38 254 210 100

Selected items will appear here after choosing quantity and checkbox.

Standard & Custom Colours

Applications

  • Offshore drilling rigs
  • Petroleum and chemical processing plants
  • Marine and shipyard installations
  • Power generation and utilities
  • Heavy industrial environments
  • Outdoor infrastructure and exposed installations
  • Sensitive electronic and instrumentation systems

Use When

  • Extreme temperatures exceed nylon tie limits
  • Corrosion resistance is critical
  • Fire safety and low-smoke performance are required
  • High mechanical strength and permanent locking are necessary

Avoid When

  • Temporary or reusable fastening is required
  • Lightweight indoor applications do not require metal ties
  • Non-permanent cable management solutions are preferred
  • Cost-sensitive low-risk environments are involved

Why Novoflex

Novoflex engineers fastening systems for environments where conventional materials fail. By combining marine-grade stainless steel with advanced protective coatings and secure locking technology, Novoflex delivers long-term reliability under the harshest operational conditions.NOVOFLEX |
