NOVOFLEX | Disc Fir Tree Mount Clip + Cable Tie
Two-Piece Push-Fit Mount with Integrated Sealing and Cable Bundling
Engineered for Secure Mounting + Fast Cable Management
In automotive, aviation, and electrical assemblies, combining panel anchoring and cable bundling typically requires multiple components, increasing installation time and introducing additional failure points.
The NOVOFLEX Disc Fir Tree Mount Clip + Cable Tie is a two-piece pre-assembled solution that integrates secure panel mounting, environmental sealing, and cable bundling into a single workflow—delivering higher stability and faster installation in demanding environments.
Key Features
- Integrated Sealing Disc-Minimizes ingress of dust, moisture, and debris for long-term reliability
- Adaptive Fir Tree Mount-Provides secure fit across varying panel thicknesses
- Pre-Assembled Cable Tie System-Reduces installation time and eliminates additional components
- Vibration-Resistant Performance-Maintains integrity in dynamic operating conditions
- Application Versatility-Suitable for precision-driven industries requiring durable fastening solutions
Technical Specifications
- Material: UL-Listed UV-Resistant Nylon 6.6
- Optional Variant: Heat-Stabilized Nylon (up to 115°C continuous use)
- Flammability: UL94 V-2
- Operating Temperature: -25°C to +85°C
- Standard Colour: UV-Resistant Black

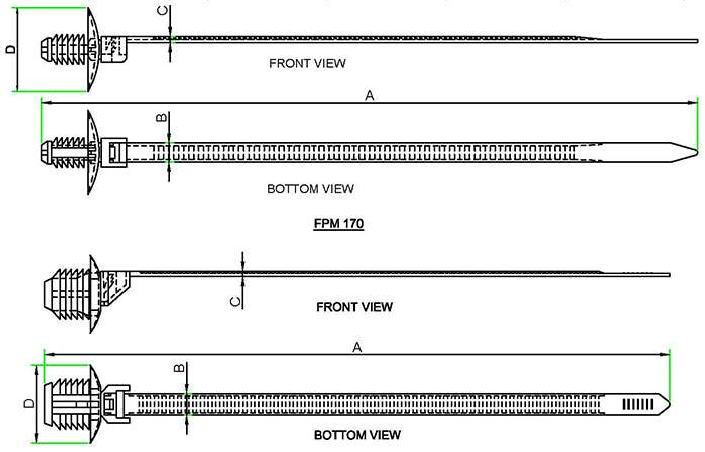

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Thickness (C) - mm | Disc Dia (D) - mm | Max Bundle Dia - mm | Chassis Thickness - mm | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|
| FPM 170 | 170 | 5 | 1.4 | 22 | 33 | 0.9 - 6.0 | 100 | ||
| CP162FMC 12 | 162 | 5.6 | 1.3 | 20.2 | 37 | 1.0 - 6.0 | 100 |
Standard & Custom Colours
Applications
- Automotive wiring harness assemblies
- Aviation and aerospace cable routing systems
- Electrical panels and switchgear installations
- White goods internal wiring management
- Industrial machinery and control systems
Use When
- Combined mounting + bundling is required in one installation step
- Environments involve dust, moisture, or vibration exposure
- Assembly speed and consistency are critical
Avoid When
- Reusable or frequently detachable fastening is required
- Independent mounting and bundling systems are preferred
Why Novoflex
Integrated Function. Reduced Assembly Time. Reliable Performance. Novoflex solutions are engineered to simplify installation while maintaining performance in real industrial environments. By integrating multiple functions into a single system, Novoflex reduces complexity and enhances long-term reliability across high-volume applications.NOVOFLEX |
