NOVOFLEX | Stud Tie
Adjustable stud-mounted cable fastening solution
Designed for automotive, aerospace, and industrial equipment applications where cable bundles must be securely mounted onto weld studs while accommodating minor alignment variations during assembly.
Key Features
- Oval mount design with lateral adjustment capability
- Direct weld stud installation without tools
- Secure fastening for vibration-prone environments
- Halogen-free industrial-grade construction
- Optional heat-stabilized variant available
Technical Specifications
- Material: UL-Listed UV-Resistant Nylon 6.6
- Optional Variant: Heat-Stabilized Nylon 6.6
- Operating Temperature: -25°C to +85°C
- Heat-Stabilized Capability: Continuous operation up to 115°C
- Mounting Type: Weld Stud Mount
- Attributes: Halogen-Free
- Standard Colour: UV-Resistant Black

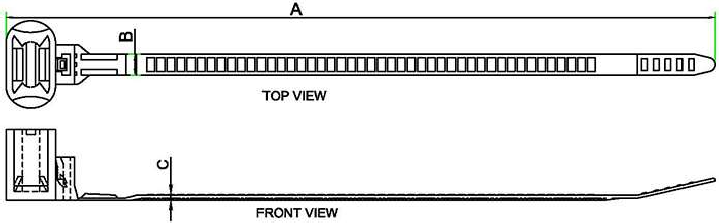

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Thickness (C) - mm | Max Bundle Dia - mm | Min Loop Tensile Strength (kgf) | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| ST 170 | 170 | 5.1 | 1.3 | 35 | 15 | 100 |
Standard & Custom Colours
Applications
- Automotive wiring harnesses
- Aerospace cable routing
- Industrial equipment wiring
- Weld stud cable fastening systems
- Electrical panel installations
- High-vibration cable management applications
Use When
- Minor stud misalignment must be accommodated
- Direct stud mounting improves installation efficiency
- Stable cable routing is required in vibration environments
- Tool-free fastening is preferred
Avoid When
- Non-stud mounting systems are required
- Heavy structural load fastening is necessary
- Frequent reusable adjustments are needed
- Operating temperatures exceed specified limits
Why Novoflex
Novoflex develops fastening systems engineered for assembly precision and long-term operational reliability. By integrating adjustable mounting geometry with durable industrial materials, Novoflex products simplify installation while improving cable routing stability.
