NOVOFLEX | Panel Mount Tie

Direct chassis-mounted adjustable cable fastening

Designed for direct panel and chassis cable fastening in automotive, heavy equipment, and industrial systems where secure retention, simplified installation, and bundle adjustability are essential.

Request a Quote

Key Features

Direct chassis fastening without additional hardware
Parallel cable routing through disc-head design
Adjustable before final tensioning
Halogen-free and UV-resistant construction
Heat-stabilized variant available for elevated temperatures

Technical Specifications

Material: UL-Listed Nylon 6.6
Type: Panel Mount Tie
Temperature Range: -25°C to +85°C
Heat Stabilized Variant: Up to +115°C Continuous Use
Installation Type: Direct Panel/Chassis Mount
Environmental Feature: Halogen-Free
Colour: UV-Resistant Black

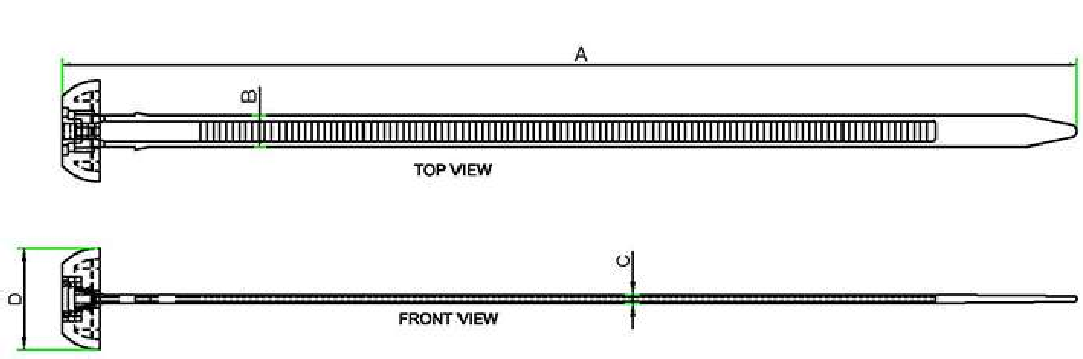

Product Dimensions

Novoflex Part No.	Length (A) - mm	Width (B) - mm	Thickness (C) - mm	Disc Dia (D) - mm	Max Bundle Dia - mm	Min Loop Tensile Strength (kgf)	Quantity	Select
PMT 200	200	6.3	1.6	20.2	50	40
PMT 380	380	6.3	1.6	20.2	107	40

Standard & Custom Colours

Applications

Automotive wiring harnesses
Trucks and heavy equipment wiring
Industrial machinery cable management
Electrical chassis installations
Vehicle electrical systems

Use When

Direct chassis fastening is preferred
Additional mounting hardware must be eliminated
Cable bundle adjustment during installation is required
High-vibration cable stability is necessary

Avoid When

Repeated reusable fastening is required
Structural load-bearing applications are involved
Mounting configurations are incompatible with panel design
Operating temperatures exceed specified limits

Why Novoflex

Novoflex designs fastening systems that simplify installation while improving structural reliability. By integrating mounting and bundling into a single solution, Novoflex reduces assembly complexity and enhances long-term cable stability in demanding environments.NOVOFLEX |
