NOVOFLEX | Disc Fir Tree Anchor Cable Tie
Push-Fit Anchor with Integrated Sealing for Secure Panel Mounting
Engineered for Harsh Panel Environments
In applications exposed to vibration, dust, and thermal variation, conventional mounting solutions often loosen over time, allowing contamination ingress and compromising system stability.
The NOVOFLEX Disc Fir Anchor Cable Tie is designed to deliver secure anchoring with built-in surface sealing, ensuring long-term reliability in automotive, electrical, and industrial assemblies.
Key Features
- Integrated Sealing Disc-Prevents contaminant entry while reducing localized stress on panels
- Adaptive Fir Tree Locking-Ensures consistent retention across different hole sizes and thicknesses
- Vibration-Resistant Performance-Maintains structural integrity under dynamic operating conditions
- Tool-Free Installation-Fast push-fit design improves assembly speed and reduces labor effort
- Industrial-Grade Durability-Designed for long-term use in demanding environments
Technical Specifications
- Material: UL-Listed Nylon 6.6
- Flammability: UL94 V-2
- Operating Temperature: -25°C to +85°C
- Compliance: Halogen-Free
- Standard Colour: UV-Resistant Black

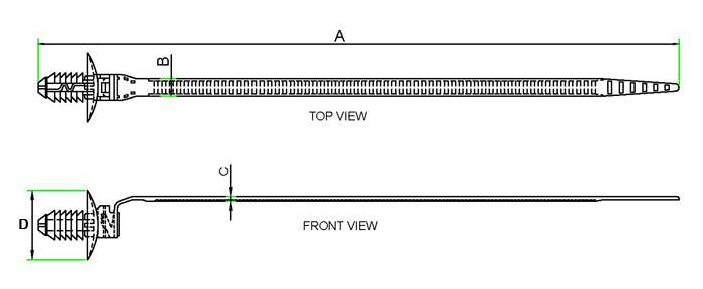

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Thickness (C) - mm | Disc Dia (D) - mm | Push Hole Dia - mm | Plate Thickness - mm | Max Bundle Dia - mm | Min Loop Tensile Strength - kgf | Standard Packing Nos | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DFAZ 170 | 170 | 4.7 | 1.3 | 18.2 | 6.5 - 7.0 | 1.0 - 7.0 | 37 | 14 | 100 |
Standard & Custom Colours
Applications
- Automotive wiring harness systems
- Electrical panels and switchgear
- White goods internal assemblies
- Aerospace and precision equipment
- Industrial control systems
Use When
- Fast, secure panel mounting is required
- Exposure to dust, moisture, or vibration is present
- Multiple panel thickness compatibility is needed
Avoid When
- Reusability or frequent removal is required
- Heavy load-bearing fastening is needed
Why Novoflex
Precision Engineered. Field Proven. Scalable Reliability. With decades of expertise in engineered plastic components and cable management systems, Novoflex delivers solutions designed to perform consistently in real-world industrial conditions.NOVOFLEX |
