NOVOFLEX | Wings Push Mount
High-retention push-mount fastening for vibration-prone systems
Designed for automotive, aerospace, panel building, and industrial equipment applications where cable bundles must remain securely fastened under vibration, movement, and dynamic operating conditions.
Key Features
- Integrated push-mount eliminates need for screws or tools
- Tensioning wings provide strong anti-vibration retention
- Ensures rattle-free and stable cable positioning
- Halogen-free material suitable for enclosed environments
- Available in UV-resistant black and natural variants
Technical Specifications
- Material: UL-Listed Nylon 6.6 (Polyamide)
- Mount Type: Arrowhead Wings Push Mount
- Panel Thickness: Up to 2.3 mm
- Operating Temperature: -25°C to +85°C
- Halogen Content: Halogen-Free
- Colour Options: UV-Resistant Black, Natural

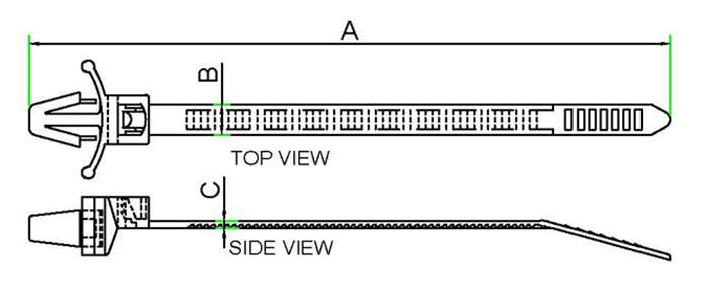

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Thickness (C) - mm | Push Hole Dia - mm | Max Bundle Dia - mm | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| CPM 135 | 135 | 4.9 | 1.3 | 7.2 | 27 | 100 | ||
| CPM 155 | 155 | 3.5 | 1.2 | 4.5 to 5.0 | 35 | 100 | ||
| CPM 190 | 190 | 5 | 1.2 | 7 | 49 | 100 | ||
| CPM 200 | 200 | 4.8 | 1.3 | 7.0 to 7.2 | 48 | 100 |
Standard & Custom Colours
Applications
- Automotive wiring harnesses
- Aerospace cable routing
- White goods manufacturing
- Electrical control panels
- Industrial machinery wiring
- High-vibration fastening systems
Use When
- Cable bundles require vibration-resistant mounting
- Fast tool-free installation is preferred
- Secure push-fit retention is necessary
- Outdoor or industrial durability is important
Avoid When
- Reusable fastening systems are required
- Extremely heavy cable loads exceed specifications
- Non-panel mounting surfaces are unavailable
- Operating temperatures exceed rated limits
Why Novoflex
Novoflex engineers fastening systems designed for reliable cable retention in demanding operational environments. Through optimized locking geometry and industrial-grade materials, Novoflex products improve installation speed while maintaining long-term structural stability.
