NOVOFLEX | Oval Disc Arrowhead Cable Tie
Secure oval-hole cable fastening with sealing protection
Designed for cable fastening applications using oval mounting holes where secure retention, environmental protection, and vibration-resistant performance are required.
Key Features
- Specifically designed for oval-hole mounting applications
- Arrowhead locking mechanism for secure retention
- Protective disc reduces contaminant ingress
- Tool-free one-piece installation system
- Heat-stabilized variant available for elevated temperatures
Technical Specifications
- Material: UL-Listed Nylon 6.6
- Type: Oval Disc Arrowhead Cable Tie
- Temperature Range: -25°C to +85°C
- Heat Stabilized Variant: Up to +115°C Continuous Use
- Design Feature: Arrowhead Lock with Protective Disc
- Environmental Feature: Halogen-Free
- Colour: UV-Resistant Black

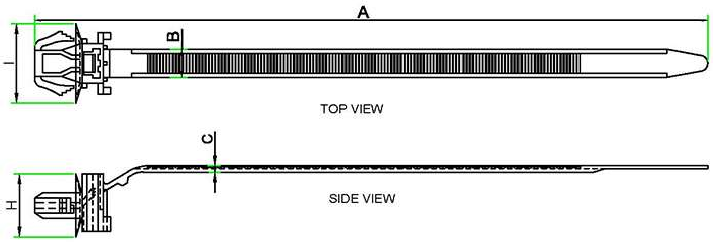

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Thickness (C) - mm | Disc Dia (H X I) - mm | Push Mount Hole Dia - mm | Panel Thickness - mm | Max Bundle Dia - mm | Min Loop Tensile Strength (kg) | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ODA 166 | 166 | 7 | 1.6 | 15.7 X 19.9 | 7.0 X 12 | 0.5 - 2.0 | 35 | 22 | 100 |
Standard & Custom Colours
Applications
- Automotive wiring systems
- Industrial control panels
- Telecom and outdoor cable routing
- Electrical equipment assembly
- High-vibration machinery installations
Use When
- Oval mounting holes are specified
- Environmental sealing around mounting points is needed
- Fast tool-free installation is preferred
- Vibration-resistant cable retention is critical
Avoid When
- Round-hole mounting systems are required exclusively
- Reusable fastening functionality is necessary
- Structural load-bearing applications are involved
- Temperatures exceed specified operating limits
Why Novoflex
Novoflex develops fastening systems tailored to real-world installation challenges. By engineering geometry-specific retention and integrated environmental protection, Novoflex ensures secure and efficient cable management across demanding industrial applications.NOVOFLEX |
