NOVOFLEX | Disc Angular Push-Mount Cable Ties
Angular sealed cable routing with vibration control
Designed for advanced cable routing applications where bundles must be securely anchored, directionally guided, and protected from environmental contamination in high-vibration industrial and automotive systems.
Key Features
- Angular design for flexible cable routing
- Push-mount anchor for quick tool-free installation
- Protective disc shields against contaminants
- Winged structure improves vibration and shock resistance
- Available in reusable and high-temperature variants
Technical Specifications
- Material: UL Listed Nylon 6.6
- Type: Disc Angular Push-Mount Cable Tie
- Temperature Range: -25°C to +85°C
- HSB Variant Temperature: Up to +115°C
- HTR Variant Temperature: Up to +150°C
- Flammability Rating: UL94 V-2
- Resistance: UV, Fungus, Corrosion, Mild Acids
- Environmental Feature: Halogen-Free
- Colour Options: Natural White, UV-Resistant Black
- Standard Packing: 100 Pieces per Pack

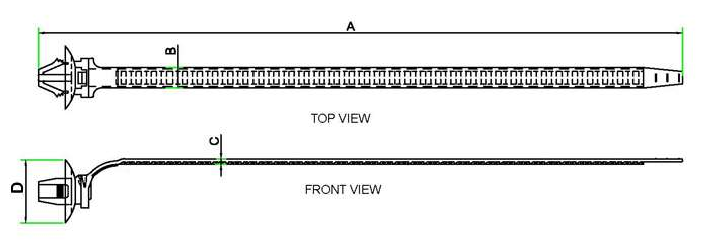

Product Dimensions
| Novoflex Part No. | Type | Length (A) - mm | Width (B) - mm | Thickness (C) - mm | Disc Dia (D) - mm | Chassis Thickness - mm | Push Hole Dia - mm | Max Bundle Dia - mm | Min Loop Tensile Strength (kg) | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DAPM 164 | Non Reusable | 164 | 5.3 | 1.4 | 16.3 | 0.6 - 2.6 | 7 | 44 | 15 | 100 | ||
| DAPM 164 R | Reusable | 164 | 5.3 | 1.4 | 16.3 | 0.6 - 2.6 | 7 | 44 | 15 | 100 | ||
| DAPM 164 65 | Non Reusable | 164 | 5.3 | 1.4 | 16.3 | 0.6 – 3.0 | 6.5 - 7.0 | 44 | 15 | 100 | ||
| DAPM 164 65 R | Reusable | 164 | 5.3 | 1.4 | 16.3 | 0.6 – 3.0 | 6.5 - 7.0 | 44 | 15 | 100 |
Standard & Custom Colours
Applications
- Automotive wiring harness routing
- Industrial control panels and machinery
- Telecom towers and antenna systems
- Solar and wind energy installations
- Railways and aviation systems
- Marine and ship-building cable management
- Consumer durable and white goods manufacturing
Use When
- Cable routing requires directional flexibility
- Mounting holes need environmental sealing
- High-vibration stability is critical
- Reusable fastening improves maintenance efficiency
Avoid When
- Heavy structural load-bearing support is required
- Mounting hole specifications are incompatible
- Flat linear routing without angular positioning is sufficient
- Operating conditions exceed specified thermal limits
