NOVOFLEX | Stainless Steel Cable Ties

Extreme-duty metal fastening for harsh environments

Designed for high-temperature, corrosive, chemical, marine, and hazardous industrial environments where conventional fastening systems fail under mechanical stress, environmental exposure, or fire conditions.

Request a Quote
Stainless Steel Cable Ties

Key Features

  • Marine-grade SS316 stainless steel construction
  • Ball-bearing self-locking mechanism
  • Resistant to corrosion, chemicals, UV, and fire
  • High tensile strength for demanding

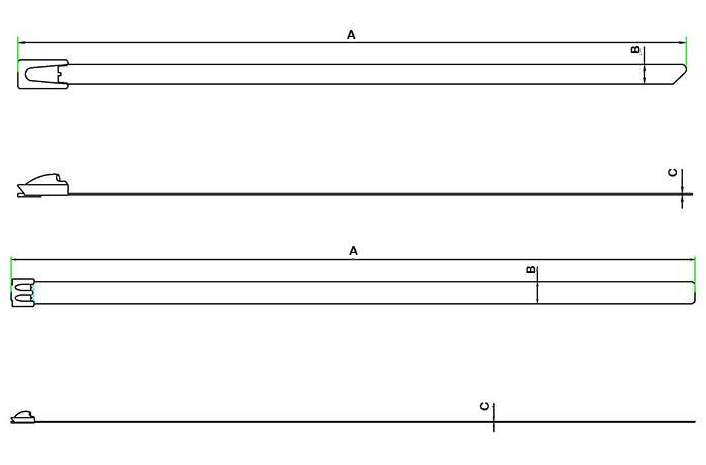

Stainless Steel Cable Ties technical drawing

Technical Specifications

  • Material: Stainless Steel Grade SS316
  • Locking Mechanism: Ball-Bearing Positive Lock
  • Operating Temperature: -80°C to +538°C
  • Tensile Strength Range: 26 kg to 210 kg
  • Environmental Resistance: Corrosion, Weather, UV, Chemicals, Radiation
  • Fire Performance: Non-Flammable & Fire-Resistant
  • Additional Property: Anti-Magnetic

Product Dimensions

Novoflex Part No. Length A (mm) Width B (mm ) Thickness C (mm) Max Dia (mm) Tensile Strength (Kg) Standard Packing (Nos.) Quantity Select
SS 46 100 100 4.6 0.22 26 55 100
SS 46 150 150 4.6 0.22 35 55 100
SS 46 200 200 4.6 0.22 51 55 100
SS 46 250 250 4.6 0.22 62 55 100
SS 46 300 300 4.6 0.22 75 55 100
SS 46 360 360 4.6 0.22 90 55 100
SS 46 450 450 4.6 0.22 112 55 100
SS 46 520 520 4.6 0.22 130 55 100
SS 79 100 100 7.9 0.22 26 105 100
SS 79 150 150 7.9 0.22 35 105 100
SS 79 200 200 7.9 0.22 51 105 100
SS 79 250 250 7.9 0.22 62 105 100
SS 79 300 300 7.9 0.22 75 105 100
SS 79 360 360 7.9 0.22 90 105 100
SS 79 450 450 7.9 0.22 112 105 100
SS 79 520 520 7.9 0.22 130 105 100
SS 79 680 680 7.9 0.22 170 105 100
SS 120 360 360 12 0.22 90 210 100
SS 120 520 520 12 0.22 130 210 100
SS 120 680 680 12 0.22 170 210 100
SS 120 840 840 12 0.22 210 210 100

Selected items will appear here after choosing quantity and checkbox.

Applications

  • Petrochemical facilities
  • Offshore and marine installations
  • Shipbuilding and dockyards
  • Mining and heavy industry
  • Power generation plants
  • Food processing industries
  • Hazardous industrial environments
  • Pipe and cable fastening systems

Use When

  • Extreme heat or corrosive conditions are present
  • Permanent heavy-duty fastening is required
  • Chemical and UV resistance are critical
  • High mechanical strength is necessary

Avoid When

  • Reusable fastening systems are preferred
  • Lightweight low-load applications are involved
  • Electrical insulation from the fastening material is required
  • Cost-sensitive indoor applications do not require stainless steel performance

Why Novoflex

Novoflex engineers fastening systems built for environments where failure carries operational risk. By combining marine-grade stainless steel with precision locking technology, Novoflex products deliver long-term structural reliability under extreme industrial conditions.NOVOFLEX |
