NOVOFLEX | Reusable Push Mount Cable Ties
Reusable push-fit cable anchoring system
Designed for dynamic cable management applications where bundles must be securely mounted to panels or chassis while remaining accessible for repeated adjustments, servicing, and maintenance.
Key Features
- Push-fit mounting for tool-free installation
- Reusable locking system for repeated servicing
- Secure, rattle-free cable anchoring
Technical Specifications
- Material: UL-Listed Nylon 6.6 (Polyamide)
- Type: Reusable Push Mount Cable Tie
- Installation Method: Push Mount
- Temperature Range: -25°C to +85°C
- Flammability Rating: UL94 V-2
- Resistance: UV, Fungus, Corrosion, Mild Acids
- Colour: UV-Resistant Black
- Environmental Feature: Halogen-Free

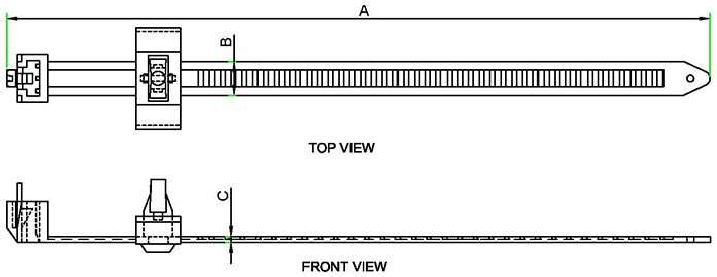

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Thickness (C) - mm | Max Bundle Dia - mm | Push Hole Dia - mm | Panel Thickness - mm | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|
| CB 160 | 160 | 8 | 1.4 | 43 | 6.9 - 7.0 | 1.0 - 2.5 | 100 |
Standard & Custom Colours
Applications
- Automotive wiring harnesses
- Industrial cable routing systems
- Heavy equipment manufacturing
- Maintenance and repair operations
- General reusable cable management
Use When
- Frequent cable adjustments are required
- Tool-free panel mounting is preferred
- Reusable fastening reduces maintenance cost
- Vibration-resistant cable anchoring is necessary
Avoid When
- Permanent tamper-proof fastening is required
- Heavy structural cable loads exceed tie capacity
- Panel hole compatibility is unavailable
- Extreme environments exceed operating limits
Why Novoflex
Novoflex develops cable management solutions that combine installation efficiency with long-term adaptability. By integrating reusable fastening with secure push-mount anchoring, Novoflex reduces downtime, simplifies maintenance, and improves system flexibility.NOVOFLEX |
