NOVOFLEX | Double Head Cable Tie
Dual-bundle fastening with controlled cable separation
Designed for automotive, electrical, wire harness, and industrial cable routing applications where two independent cable bundles must be secured simultaneously while maintaining organized separation.
Key Features
- Dual-head configuration for two cable bundles
- Internal and external serration locking design
- Organized parallel cable routing
- Reduced installation time and tie usage
- UV-resistant industrial-grade Nylon construction
Technical Specifications
- Material: UL-Listed UV-Resistant Nylon 6.6
- Flammability Rating: UL94V-2
- Operating Temperature: -25°C to +85°C
- Design Type: Dual Head Cable Tie
- Serration Type: Internal & External Serrations
- Standard Colour: UV-Resistant Black

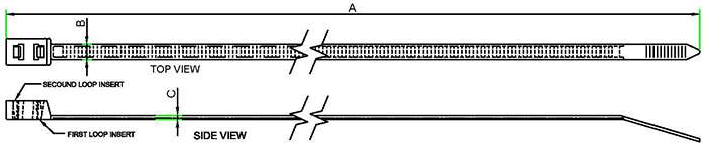

Product Dimensions
| Novoflex Part No. | Length (A) - mm | Width (B) - mm | Thickness (C) - mm | Max Bundle Dia - mm | Min Loop Tensile Strength (kg) | Max. Cable Bundle Dia (per Loop) | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|---|
| CP 400 DH | 400 | 4.7 | 1.3 | 113 | 20 | 51 | 100 | ||
| CP 200 DH | 200 | 4.7 | 1.3 | 50 | 20 | 24 | 100 |
Standard & Custom Colours
Applications
- Automotive wiring harnesses
- Electrical cable routing
- Industrial control systems
- Packaging and bundling applications
- Parallel wire management systems
- Structured cable installations
Use When
- Two cable bundles require simultaneous fastening
- Organized parallel routing is important
- Installation efficiency must be improved
- Reduced fastening hardware is preferred
Avoid When
- Single-bundle fastening is sufficient
- Heavy-duty structural fastening is required
- Frequent reusable adjustments are necessary
- Operating conditions exceed specified limits
Why Novoflex
Novoflex engineers fastening systems that improve routing efficiency while maintaining long-term reliability. Through intelligent locking designs and durable industrial-grade materials, Novoflex products simplify complex cable management challenges across demanding industries.
