NOVOFLEX | Heat Stabilized Cable Ties

Reliable cable fastening under elevated temperatures

Designed for high-temperature industrial environments where cable management systems are exposed to continuous thermal stress in automotive systems, railway infrastructure, electrical panels, and heavy-duty equipment.

Request a Quote
Heat Stabilized Cable Ties

Key Features

  • Continuous operating capability up to 115°C
  • Heat stabilized UL-listed Nylon 6.6 construction
  • Maintains locking integrity under thermal stress
  • UL94V-2 flame-retardant compliance
  • Suitable for harsh industrial and automotive environments

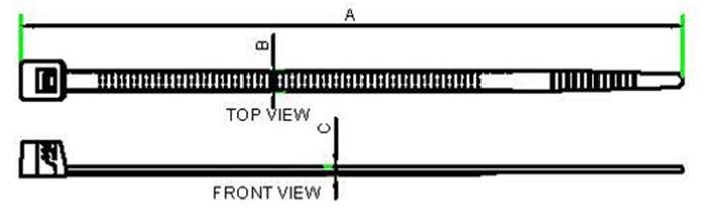

Heat Stabilized Cable Ties technical drawing

Technical Specifications

  • Material: Heat Stabilized UL-Listed Nylon 6.6
  • Operating Temperature: Up to 115°C
  • Flammability Rating: UL94V-2
  • Standard Colour: UV-Resistant Black
  • Optional Colours: Available subject to MOQ
  • Installation Type: Self-Locking Cable Tie

Product Dimensions

Novoflex Part No. Length (A) - mm Width (B) - mm Thickness (C) - mm Min Loop Tensile Strength (kgf) Max Bundle Dia - mm Standard Packing (Nos.) Quantity Select
CPS 100 HSB 100 2.5 1 8 24 1000
CPSS 150 HSB 150 2.5 1.1 8 40 1000
CPSS 200 HSB 200 2.5 1.2 8 55 1000
CPS 30150 HSB 150 3 1.1 12 38 1000
CPS 150 HSB 150 3.6 1.2 14 36 1000
CPS 30200 HSB 200 3 1.1 12 54 100
CPS 200 HSB 200 3.6 1.2 14 54 100
CPS 250 HSB 250 3.6 1.2 14 70 100
CPSS 300 HSB 300 3.6 1.2 14 86 100
CPSS 370 HSB 370 3.6 1.2 14 108 100
CP 200 HSB 200 4.7 1.2 22 50 100
CP 250 HSB 250 4.7 1.3 22 64 100
CPS 300 HSB 300 4.7 1.3 22 82 100
CPS 368 HSB 368 4.7 1.3 22 103 100
CPS 450 HSB 450 4.8 1.4 22 130 100
CPS 550 HSB 550 4.6 1.3 22 162 100
CP 150 HD HSB 150 7.5 1.5 55 32 100
CP 200 HD HSB 200 7.5 1.5 55 49 100
CP 250 HD HSB 250 7.5 1.5 55 65 100
CP 300 HSB 300 7.6 1.6 55 76 100
CP 380 HSB 380 7.6 1.5 55 108 100
CP 450 HSB 450 7.5 1.6 55 125 100
CP 550 HSB 550 9 1.8 80 156 100
CP 610 HSB 610 9 1.8 80 171 100
CP 750 HSB 750 9 1.8 80 219 100
CP 920 HSB 920 9 1.8 80 275 100
CP 650 EHD HSB 650 12.2 2 90 185 100

Selected items will appear here after choosing quantity and checkbox.

Standard & Custom Colours

Applications

  • Automotive engine compartments
  • Railway electrical systems
  • Industrial control panels
  • Power distribution systems
  • High-temperature machinery wiring
  • Electrical harness management

Use When

  • Continuous heat exposure is present
  • Cable routing occurs near heat-generating equipment
  • Thermal cycling conditions exist
  • Long-term fastening stability is critical

Avoid When

  • Operating temperatures exceed specified limits
  • Chemical-specific resistance beyond Nylon properties is required
  • Metal fastening systems are mandatory
  • Extreme fireproofing standards beyond UL94V-2 are necessary

Why Novoflex
