NOVOFLEX | UV Resistant Cable Ties
Long-life outdoor cable fastening
Designed for prolonged outdoor exposure in solar, telecom, infrastructure, transportation, and utility installations where cable fastening systems must withstand UV radiation, heat, rain, and environmental degradation.
Key Features
- UV-stabilized Nylon 6.6 with carbon black formulation
- Equivalent durability to approximately 5 years of outdoor UV exposure
- Resistant to fungus, corrosion, and mild acids
- UL94 V-2 flammability compliant
- Suitable for continuous outdoor operation in harsh climates
Technical Specifications
- Material: UL-Listed Nylon 6.6 with Carbon Black
- Colour: UV-Resistant Black
- Temperature Range: -25°C to +85°C (Continuous)
- Intermittent Exposure: Up to +105°C for 500 Hours
- Flammability Rating: UL94 V-2
- Weathering Life Expectancy: Approx. 4–5 Years Outdoor Exposure
- Resistance: UV, Fungus, Corrosion, Mild Acids
- Environmental Feature: Halogen-Free

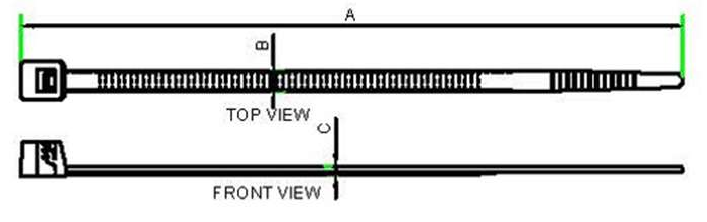

Product Dimensions
| Novoflex Part No. | Length Length (A) - mm | Width (B) - mm | Thickness (C) - mm | Min Loop Tensile Strength (kg) | Max Bundle Dia - mm | Standard Packing (Nos) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| CPS 100 ES (B) | 100 | 2.5 | 1.1 | 8 | 24 | 1000 | ||
| CPSS 150 ES (B) | 150 | 2.5 | 1.1 | 8 | 40 | 1000 | ||
| CPSS 200 ES (B) | 200 | 2.5 | 1.2 | 8 | 55 | 1000 | ||
| CPS 30150 ES (B) | 150 | 3 | 1.1 | 12 | 38 | 1000 | ||
| CPSS 150 ES (B) | 150 | 3.6 | 1.2 | 14 | 36 | 1000 | ||
| CPS 30200 ES (B) | 200 | 3 | 1.1 | 12 | 54 | 100 | ||
| CPS 200 ES (B) | 200 | 3.6 | 1.2 | 14 | 54 | 100 | ||
| CPS 250 ES (B) | 250 | 3.6 | 1.2 | 14 | 70 | 100 | ||
| CPSS 300 ES (B) | 300 | 3.6 | 1.2 | 14 | 86 | 100 | ||
| CPSS 370 ES (B) | 370 | 3.6 | 1.2 | 14 | 108 | 100 | ||
| CP 200 ES (B) | 200 | 4.7 | 1.2 | 22 | 50 | 100 | ||
| CP 250 ES (B) | 250 | 4.7 | 1.3 | 22 | 64 | 100 | ||
| CPS 300 ES (B) | 300 | 4.7 | 1.3 | 22 | 82 | 100 | ||
| CPS 368 ES (B) | 368 | 4.7 | 1.3 | 22 | 103 | 100 | ||
| CPS 450 ES (B) | 450 | 4.8 | 1.4 | 22 | 130 | 100 | ||
| CPS 550 ES (B) | 550 | 4.6 | 1.3 | 22 | 162 | 100 | ||
| CP 150 HD ES (B) | 150 | 7.5 | 1.5 | 55 | 32 | 100 | ||
| CP 200 HD ES (B) | 200 | 7.5 | 1.5 | 55 | 49 | 100 | ||
| CP 250 HD ES (B) | 250 | 7.5 | 1.5 | 55 | 65 | 100 | ||
| CP 300 ES (B) | 300 | 7.6 | 1.6 | 55 | 76 | 100 | ||
| CP 380 ES (B) | 380 | 7.6 | 1.5 | 55 | 108 | 100 | ||
| CP 450 ES (B) | 450 | 7.5 | 1.6 | 55 | 125 | 100 | ||
| CP 550 ES (B) | 550 | 9 | 1.8 | 80 | 156 | 100 | ||
| CP 610 ES (B) | 610 | 9 | 1.8 | 80 | 171 | 100 | ||
| CP 750 ES (B) | 750 | 9 | 1.8 | 80 | 219 | 100 | ||
| CP 920 ES (B) | 920 | 9 | 1.8 | 80 | 275 | 100 | ||
| CP 650 EHD ES (B) | 650 | 12.2 | 2 | 90 | 185 | 100 |
Standard & Custom Colours
Applications
- Solar panel and photovoltaic cable management
- Outdoor telecom towers and antenna systems
- Construction and infrastructure wiring
- Automotive and transport exterior wiring
- Utility substations and power installations
- Marine and offshore cable routing
- Agricultural irrigation and support systems
- Outdoor lighting and signage systems
Use When
- Installations are exposed to continuous sunlight
- Long-term outdoor durability is required
- UV degradation resistance is critical
- Harsh weather and environmental exposure are expected
Avoid When
- Indoor-only applications do not require UV stabilization
- Temperatures exceed specified operational limits
- Heavy structural load-bearing is required
- Reusable fastening systems are preferred
Why Novoflex
Novoflex engineers cable fastening systems for real-world environmental stress. By combining UV stabilization, material purity, and proven outdoor durability, Novoflex ensures long-lasting performance in critical outdoor infrastructure.NOVOFLEX |
