NOVOFLEX | High Temperature Cable Ties

Extreme heat-resistant fastening for critical cable systems

Designed for high-temperature industrial environments where cable management systems are exposed to continuous thermal stress, chemical exposure, and demanding operating conditions in drilling, railway, offshore, and automotive applications.

Request a Quote
High Temperature Cable Ties

Key Features

  • Continuous operating temperature up to +150°C
  • Intermittent exposure capability up to +195°C
  • Advanced Nylon 4.6 construction
  • Halogen-free low smoke design
  • Stable fastening under extreme thermal stress

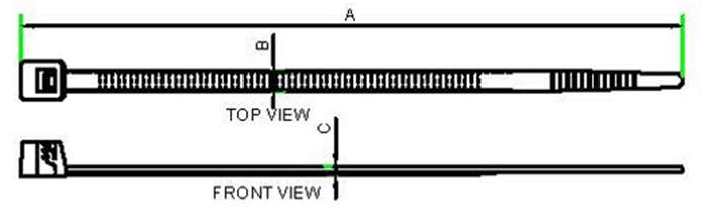

High Temperature Cable Ties technical drawing

Technical Specifications

  • Material: Nylon 4.6 (Polyamide)
  • Continuous Operating Temperature: -25°C to +150°C
  • Intermittent Temperature: +195°C for up to 500 hours
  • Flammability Characteristics: Halogen-Free
  • Standard Colour: Olive Green
  • Installation Type: Self-Locking Cable Tie

Product Dimensions

Novoflex Part No. Length (A) - mm Width (B) - mm Thickness (C) - mm Min Loop Tensile Strength (kgf) Max Bundle Dia - mm Standard Packing (Nos) Quantity Select
CPS 100 HTR 100 2.5 1 8 24 1000
CPSS 150 HTR 150 2.5 1.1 8 40 1000
CPSS 200 HTR 200 2.5 1.2 8 55 1000
CPS 30150 HTR 150 3 1.1 12 38 1000
CPS 150 HTR 150 3.6 1.2 14 36 1000
CPS 30200 HTR 200 3 1.1 12 54 100
CPS 200 HTR 200 3.6 1.2 14 54 100
CPS 250 HTR 250 3.6 1.2 14 70 100
CPSS 300 HTR 300 3.6 1.2 14 86 100
CPSS 370 HTR 370 3.6 1.2 14 108 100
CP 200 HTR 200 4.7 1.2 22 50 100
CP 250 HTR 250 4.7 1.3 22 64 100
CPS 300 HTR 300 4.7 1.3 22 82 100
CPS 368 HTR 368 4.7 1.3 22 103 100
CPS 450 HTR 450 4.8 1.4 22 130 100
CPS 550 HTR 550 4.6 1.3 22 162 100
CP 150 HD HTR 150 7.5 1.5 55 32 100
CP 200 HD HTR 200 7.5 1.5 55 49 100
CP 250 HD HTR 250 7.5 1.5 55 65 100
CP 300 HTR 300 7.6 1.6 55 76 100
CP 380 HTR 380 7.6 1.5 55 108 100
CP 450 HTR 450 7.5 1.6 55 125 100
CP 550 HTR 550 9 1.8 80 156 100
CP 610 HTR 610 9 1.8 80 171 100
CP 750 HTR 750 9 1.8 80 219 100
CP 920 HTR 920 9 1.8 80 275 100
CP 650 EHD HTR 650 12.2 2 90 185 100

Selected items will appear here after choosing quantity and checkbox.

Standard & Custom Colours

Applications

  • Offshore drilling equipment
  • Railway electrical systems
  • Automotive engine compartments
  • Industrial furnaces and machinery
  • Petrochemical facilities
  • High-temperature electrical panels

Use When

  • Continuous high-temperature exposure exists
  • Fire safety and low smoke generation are important
  • Thermal cycling environments are present
  • Cable fastening reliability is critical under heat stress

Avoid When

  • Operating conditions exceed specified thermal limits
  • Stainless steel fastening is mandatory
  • Specialized chemical compatibility beyond Nylon properties is required
  • Ultra-low temperature flexibility is simultaneously necessary

Why Novoflex

Novoflex develops fastening systems engineered for thermal extremes where conventional cable management products lose structural reliability. Through specialized high-temperature polymers and industrial-grade performance engineering, Novoflex solutions maintain stability in environments defined by heat, vibration, and operational stress.NOVOFLEX |
