NOVOFLEX | Cab Lok Non Returnable Cable Ties

Permanent High-Strength Cable Fastening

Critical fastening applications where permanent cable retention, high tensile strength, and long-term locking stability are essential. Designed for electrical harnessing, industrial cable routing, infrastructure installations, panel assembly, and outdoor applications where fastening integrity must remain stable under vibration, environmental exposure, and sustained mechanical load.

In demanding installations, fastening failure rarely begins with the cable itself — it begins at the locking mechanism. Under constant load, vibration, thermal cycling, and environmental exposure, unreliable fastening systems gradually lose holding integrity, leading to cable displacement, harness instability, and operational risk. Novoflex Cab-Lok Non-Returnable Cable Ties are engineered to provide permanent one-way locking with high mechanical strength, ensuring secure fastening that remains stable throughout the service life of the installation.

Request a Quote

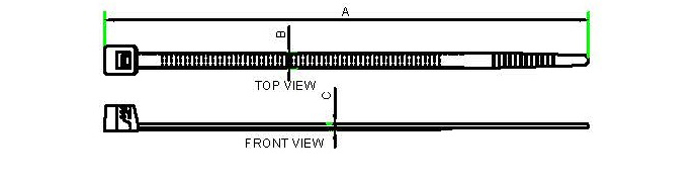

Cab Lok Non Returnable Cable Ties technical drawing

Technical Specifications

Product Type: Non-Returnable Cable Tie
Material: UL-Listed Nylon 6.6
Locking System: One-Way Ratchet Mechanism
Tensile Strength: Up to 105 kg (Variant-Dependent)
Flammability Rating: UL94 V-2
Continuous Operating Temperature: -25°C to +85°C
Intermittent Temperature Resistance: Up to +105°C (500 Hours)
Environmental Resistance: Resistant to Fungus, Corrosion & Most Acids
Standard Colours: Natural White & UV Black
Custom Colours: Red, Yellow, Blue, Green (MOQ Applicable)

Novoflex Part No.	Length (A) - mm	Width (B) - mm	Thickness (C) - mm	Min Loop Tensile Strength (kg)	Max Bundle Dia - mm	Standard Packing (Nos)
CPS 100 ES	100	2.5	1	8	24	1000
CPSS 150 ES	150	2.5	1.1	8	40	1000
CPSS 200 ES	200	2.5	1.2	8	55	1000
CPS 30150 ES	150	3	1.1	12	38	1000
CPS 150 ES	150	3.6	1.2	14	36	1000
CPS 30200 ES	200	3	1.1	12	54	100
CPS 200 ES	200	3.6	1.2	14	54	100
CPS 250 ES	250	3.6	1.2	14	70	100
CPSS 300 ES	300	3.6	1.2	14	86	100
CPSS 370 ES	370	3.6	1.2	14	108	100
CP 200 ES	200	4.7	1.2	22	50	100
CP 250 ES	250	4.7	1.3	22	64	100
CPS 300 ES	300	4.7	1.3	22	82	100
CPS 368 ES	368	4.7	1.3	22	103	100
CPS 450 ES	450	4.8	1.4	22	130	100
CPS 550 ES	550	4.6	1.3	22	162	100
CP 150 HD	150	7.5	1.5	55	32	100
CP 200 HD	200	7.5	1.5	55	49	100
CP 250 HD	250	7.5	1.5	55	65	100
CP 300 ES	300	7.6	1.6	55	76	100
CP 380 ES	380	7.6	1.5	55	108	100
CP 450 ES	450	7.5	1.6	55	125	100
CP 550 ES	550	9	1.8	80	156	100
CP 610 ES	610	9	1.8	80	171	100
CP 750 ES	750	9	1.8	80	219	100
CP 920 ES	920	9	1.8	80	275	100
CP 650 EHD	650	12.2	2	90	185	100

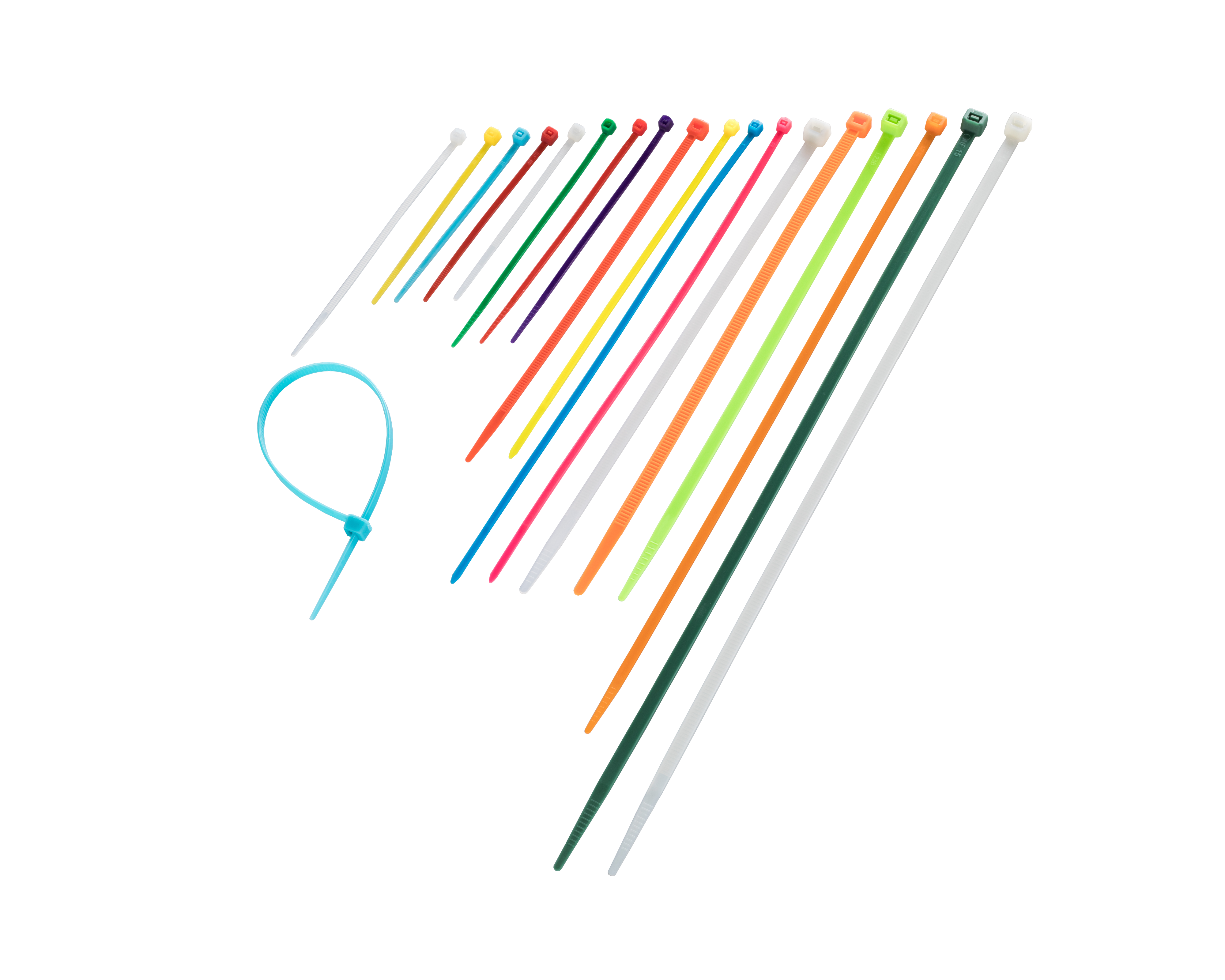

Standard & Custom Colours

Applications

Electrical and industrial cable bundling
Wiring harness and panel assembly
Infrastructure and construction installations
Outdoor cable routing systems
Telecom and networking systems
Automotive electrical harnessing
Control panel organization
OEM electrical assemblies
Applications requiring tamper-resistant fastening

Use When

Permanent non-releasable fastening is required.
High tensile strength is critical.
Long-term load stability is essential.
Vibration-resistant cable retention is necessary.
Outdoor UV-resistant fastening is required.

Avoid When

Reusable fastening systems are preferred.
Frequent cable modifications are expected.
Temporary bundling applications are involved.
Repeated servicing access is necessary.

Why Novoflex

In fastening systems, long-term reliability depends on consistent locking integrity under real operational stress. NOVOFLEX engineers industrial fastening and cable management solutions designed for permanent retention strength, installation reliability, and environmental durability across critical industrial and infrastructure applications.NOVOFLEX |
