NOVOFLEX | Reusable Cable Ties – CPR Series
Reusable high-strength adjustable cable bundling
Designed for applications requiring frequent cable adjustments, temporary bundling, and repeat-use fastening across electrical systems, maintenance setups, and dynamic installations.
Key Features
- Reusable design for multiple fastening cycles
- High tensile strength up to 20 kg
- Resistant to fungus, corrosion, and mild acids
- UL94V-2 flammability compliant
- Available in multiple colours for identification and coding
Technical Specifications
- Material: UL Listed Nylon 6.6 (Polyamide)
- Type: Reusable Cable Tie (CPR Series)
- Tensile Strength: Up to 20 kg
- Temperature Range: -25°C to +85°C
- Flammability Rating: UL94V-2
- Chemical Resistance: Fungus, Corrosion, Mild Acids
- Colour: Natural White (Std), Multi-colour options

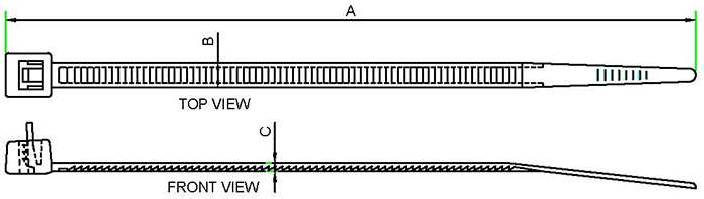

Product Dimensions
| Novoflex Part No. | Length (A) - mm | WLength (A) - mm | Width (B) - mm | Thickness (C) - mm | Max Bundle Dia - mm | Min Loop Tensile Strength (kgf) | Quantity | Select |
|---|---|---|---|---|---|---|---|---|
| CPR 100 | 100 | 3.6 | 1.2 | 20 | 14 | 100 | ||
| CPR 150 | 150 | 4.8 | 1.2 | 34 | 20 | 100 | ||
| CPR 200 | 200 | 4.7 | 1.2 | 50 | 20 | 100 | ||
| CPR 300 | 300 | 4.7 | 1.3 | 83 | 20 | 100 |
Standard & Custom Colours
Applications
- Electrical wiring and maintenance
- Temporary cable bundling
- Panel wiring adjustments
- Industrial and utility setups requiring flexibility
Use When
- Frequent adjustments or re-bundling is required
- Reusability is important to reduce cost and waste
- Moderate load-bearing cable bundling is needed
- Colour coding or identification is beneficial
Avoid When
- Permanent, tamper-proof locking is required
- Extremely high load-bearing applications are involved
- Harsh chemical exposure exceeds resistance limits
- Extreme temperatures beyond specified range are present
